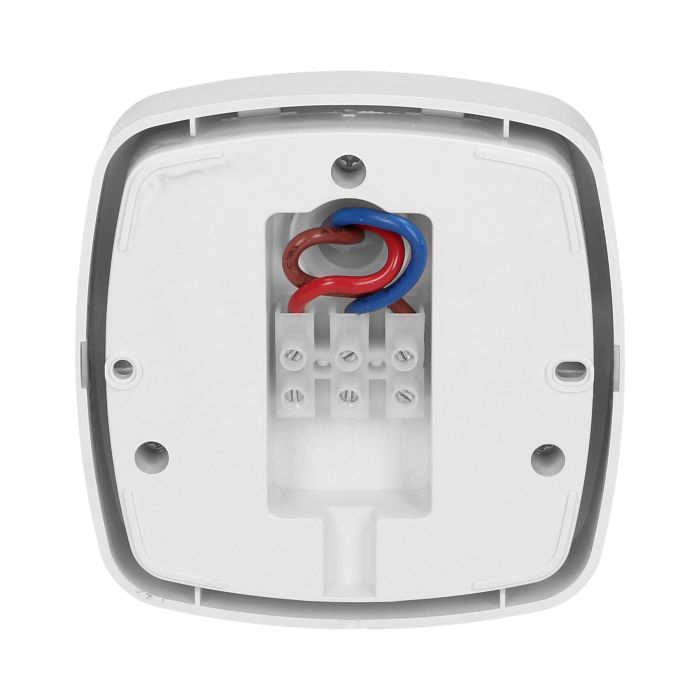

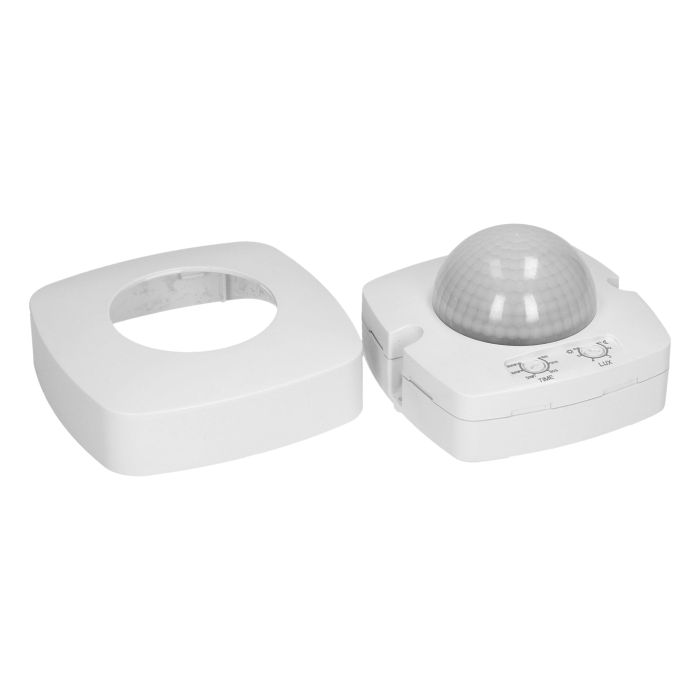

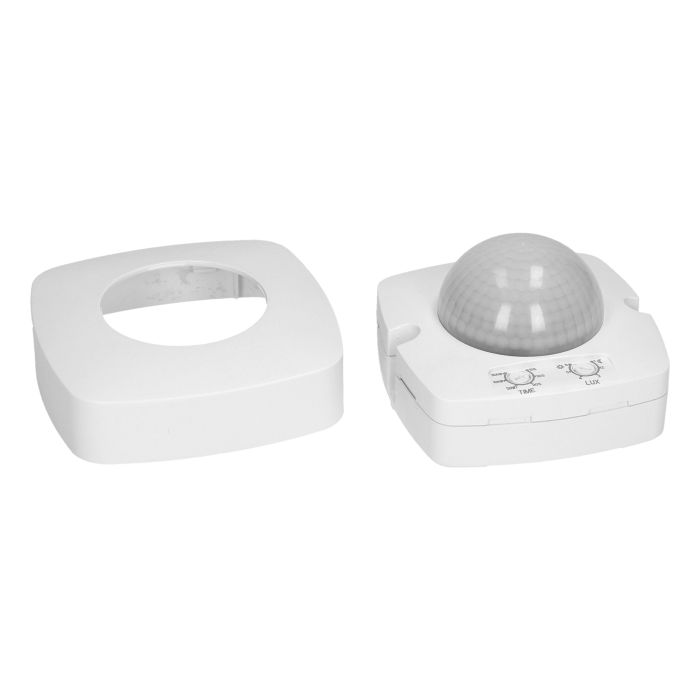

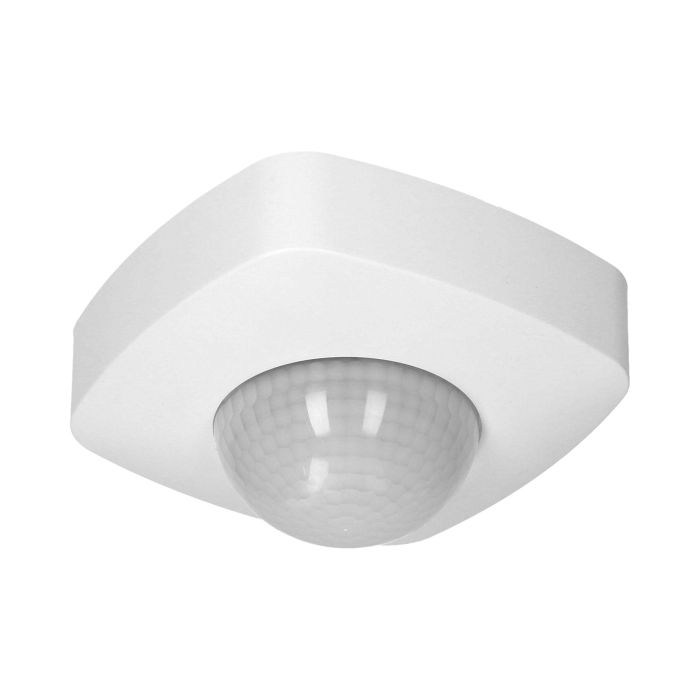

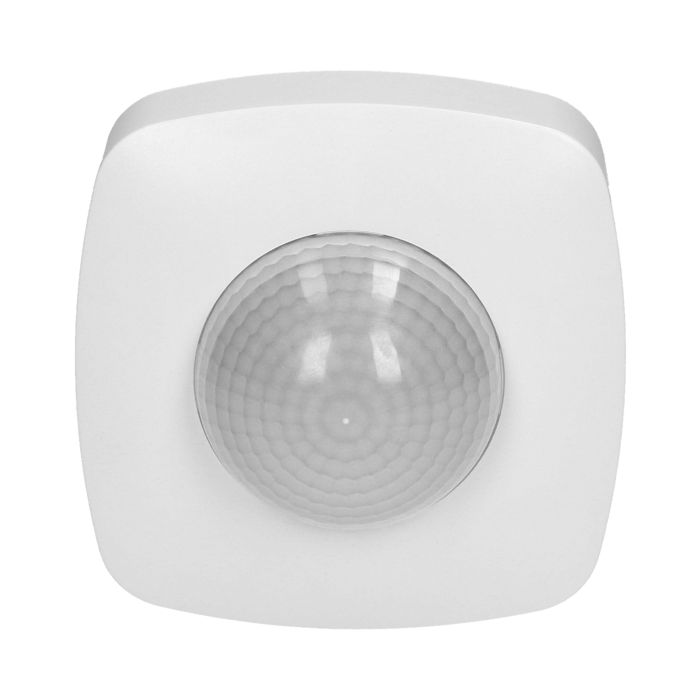

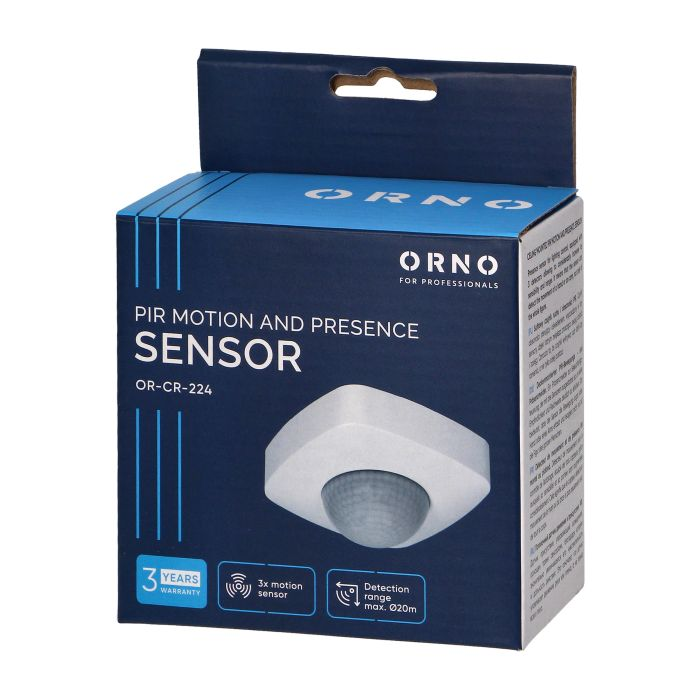

140450 - PIR presence sensor 360° with 3 detectors
https://b2b.electon.com/shop/ornor-cr-224-140450-pir-presence-sensor-360deg-with-3-detectors-1498 https://b2b.electon.com/web/image/product.template/1498/image_1920?unique=bdf30fcPassive infrared sensor (triple sensor motion detectors system positioned at a specific angle) For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Greater accuracy (detection of even minor movements) Suitable for large rooms eg. warehouses, waiting rooms, etc.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
General information: | |
---|---|
Max. load: | 2000 |
Max. load of the LED light source: | 500W |
Degree of protection (IP): | 20 |
Relay output: | Yes |
Nominal voltage: | 230V~, 50Hz |
Presence detector: | Yes |
Colour: | white |
Installation: | surface mounting |
Dimensions of the sensor - width (mm): | 102,5 mm |
Dimensions of the sensor - height (mm): | 102,5 mm |
Dimensions of the sensor - depth (mm): | 58.3 mm |
Detection angle: | 360° |
Type of sensor: | Infrared |
Detection range: | Ø20 m |
Adjustable daylight sensor (LUX): | Yes |
Daylight sensor adjustment range (LUX): | <3—2000lux |
Adjustable time setting (TIME): | Yes |
Lighting time adjustment range (TIME): | min: 10 sec. ± 3 sec.; max: 30 min. ± 2 min. |
Adjustment of motion detection range (SENS): | No |
