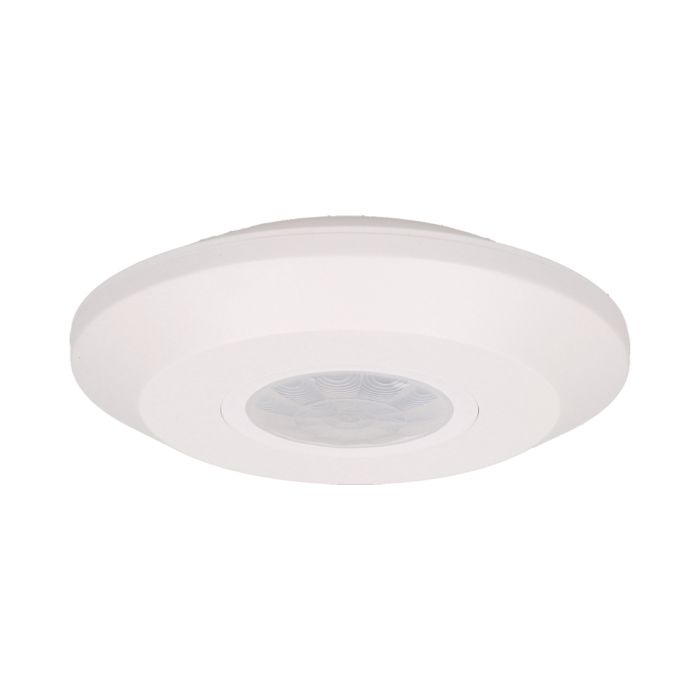

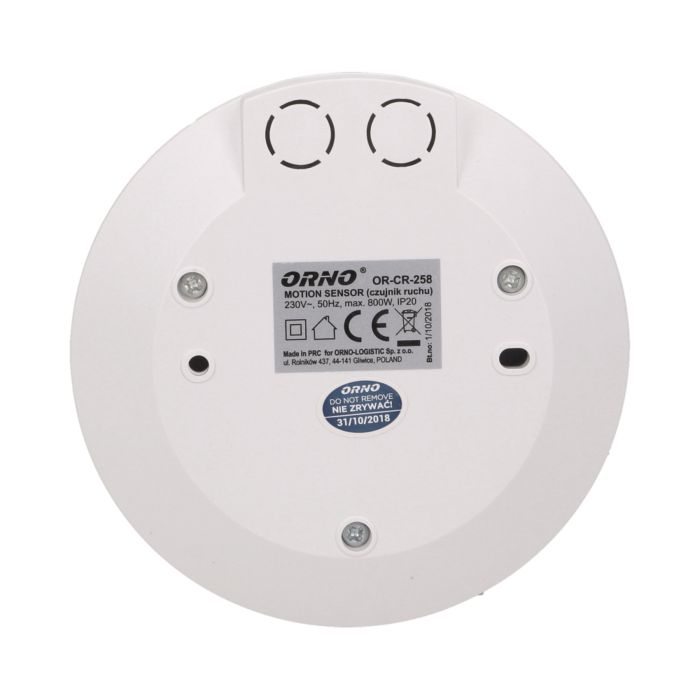

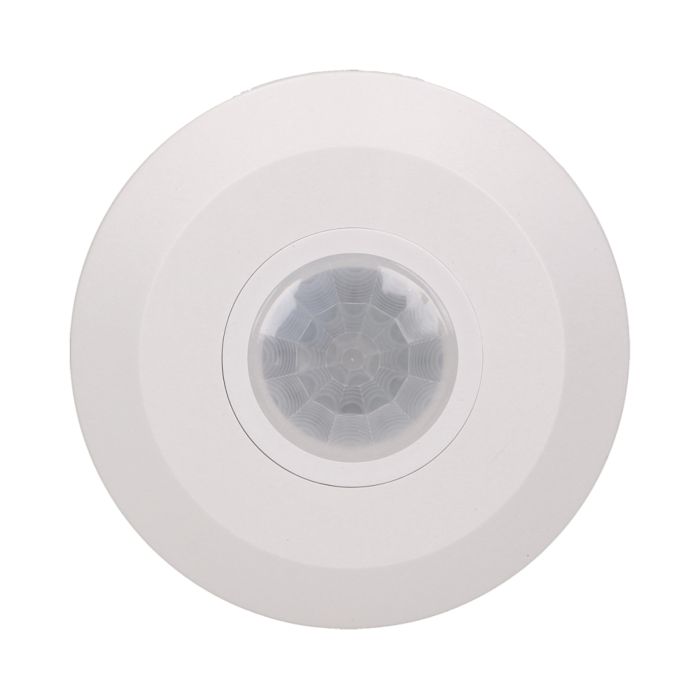

140449 - Mini motion sensor 360°
https://electon.odoo.com/shop/ornor-cr-258-140449-mini-motion-sensor-360deg-1497 https://electon.odoo.com/web/image/product.template/1497/image_1920?unique=b1d7105Small, ultra flat sensor is designed for an automatic control of lighting or other electrical equipment. Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX). The sensor cooperates with LED lighting.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
General information: | |
---|---|
Max. load: | 800 |
Max. load of the LED light source: | 200W |
Degree of protection (IP): | 20 |
Relay output: | Yes |
Nominal voltage: | 230V~, 50Hz |
Presence detector: | No |
Colour: | white |
Installation: | surface mounting |
Dimensions of the sensor - width (mm): | Ø102 mm |
Dimensions of the sensor - height (mm): | Ø102 mm |
Dimensions of the sensor - depth (mm): | 24.9 mm |
Other features: | ultra flat construction |
Detection angle: | 360° |
Type of sensor: | Infrared |
Detection range: | Ø8m m |
Adjustable daylight sensor (LUX): | Yes |
Daylight sensor adjustment range (LUX): | <3—2000lux |
Adjustable time setting (TIME): | Yes |
Lighting time adjustment range (TIME): | min.: 10 sec. ± 3 sec., max.: 15min.±2min |
Adjustment of motion detection range (SENS): | No |
