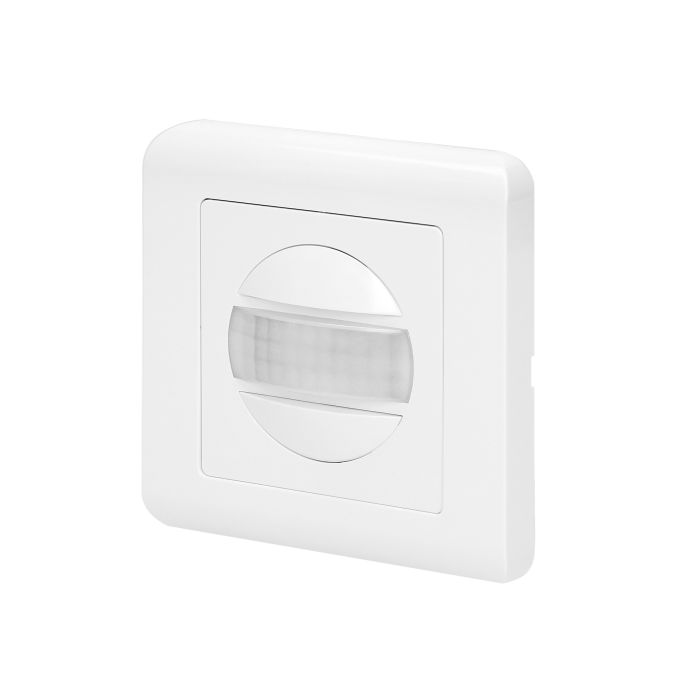

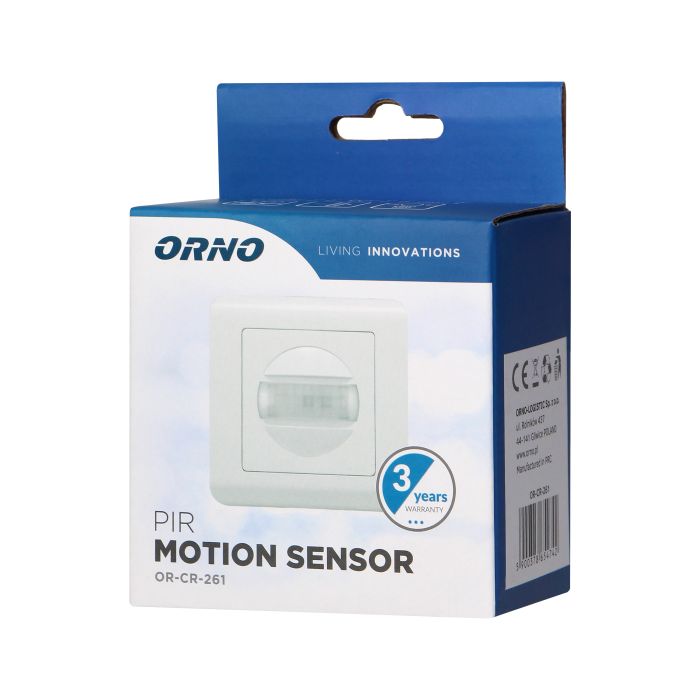

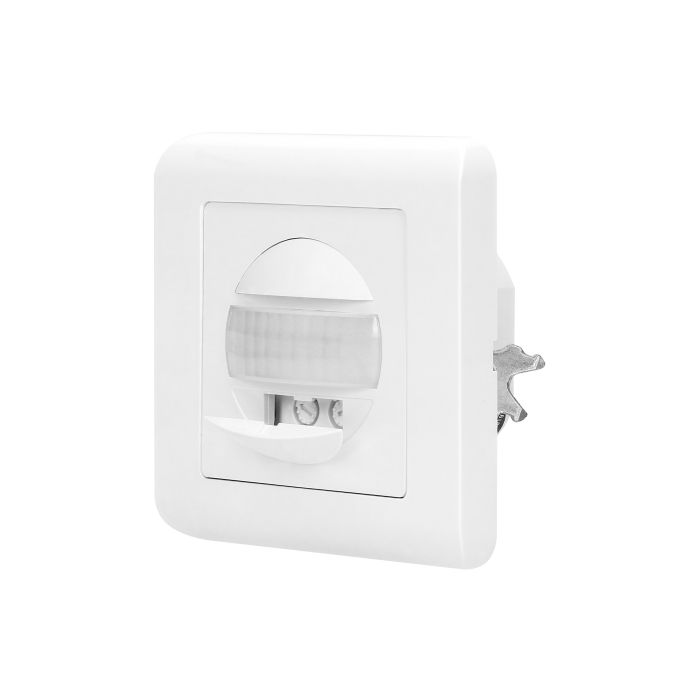

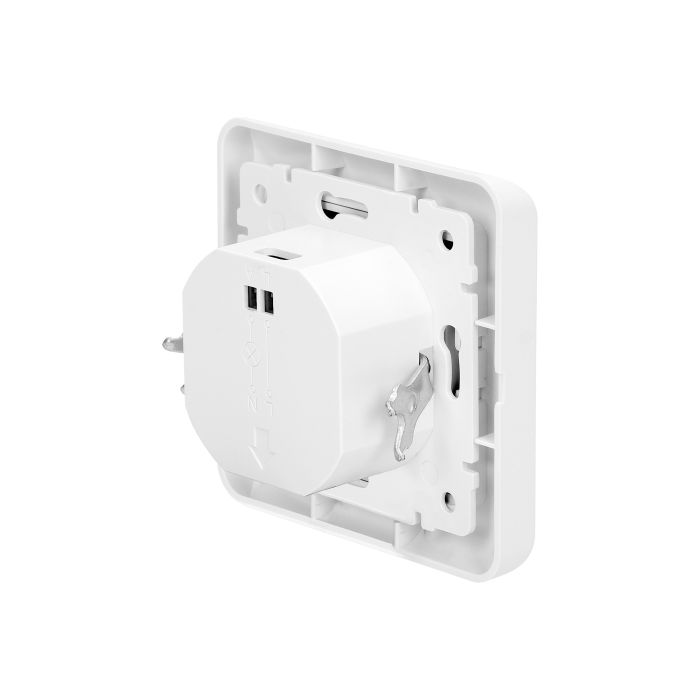

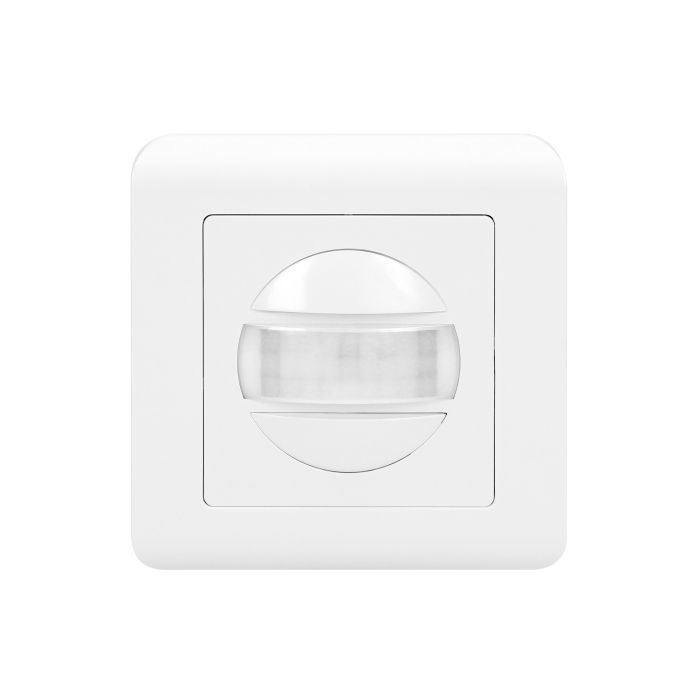

140033-Motion sensor for installation box, 160°, IP20

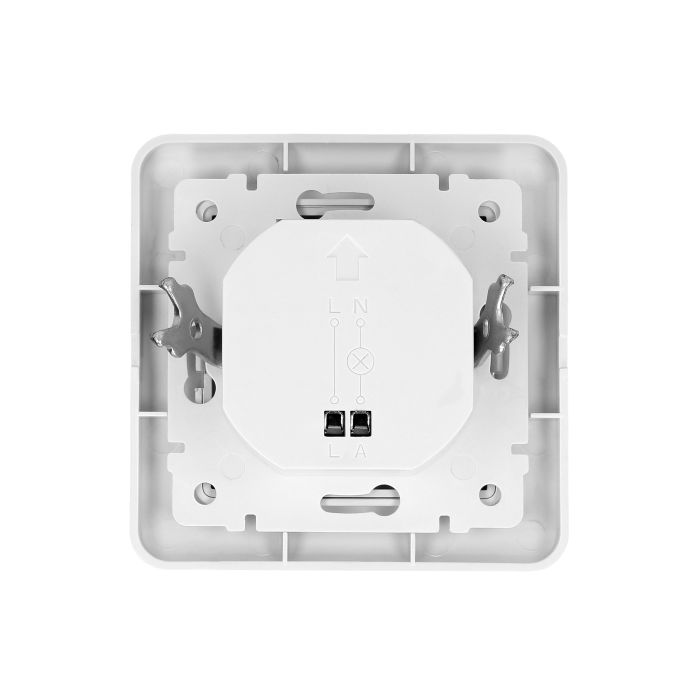

https://electon.odoo.com/shop/ornor-cr-261-140033-motion-sensor-for-installation-box-160deg-ip20-632 https://electon.odoo.com/web/image/product.template/632/image_1920?unique=56a2d24This motion sensor is used to automatically control lighting or other electric appliances. It operates based on a two-wire system and can be flush-mounted inside an installation box of Ø60 mm diameter. The device is equipped with potentiometers to adjust lighting time and light intensity.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
General information: | |
---|---|
Max. load: | 1200 |
Max. load of the LED light source: | 300W |
Degree of protection (IP): | 20 |
Relay output: | Yes |
Nominal voltage: | 230V~, 50Hz |
Presence detector: | No |
Colour: | white |
Installation: | flush mounting |
Dimensions of the sensor - width (mm): | 75 mm |
Dimensions of the sensor - height (mm): | 75 mm |
Dimensions of the sensor - depth (mm): | 50 mm |
Working temperature: | -20℃~+40℃ |
Detection angle: | 160° |
Dimensions of the mounting hole: | Ø60 mm |
Type of sensor: | Infrared |
Detection range: | 9 m |
Adjustable daylight sensor (LUX): | Yes |
Daylight sensor adjustment range (LUX): | <3—2000lux |
Adjustable time setting (TIME): | Yes |
Lighting time adjustment range (TIME): | min: 10 sec. ± 3 sec.; max: 7 min. ± 2 min. |
Adjustment of motion detection range (SENS): | No |
