  1. All Products
  2. 140445 - Motion sensor 240°, IP65, 2 sensors

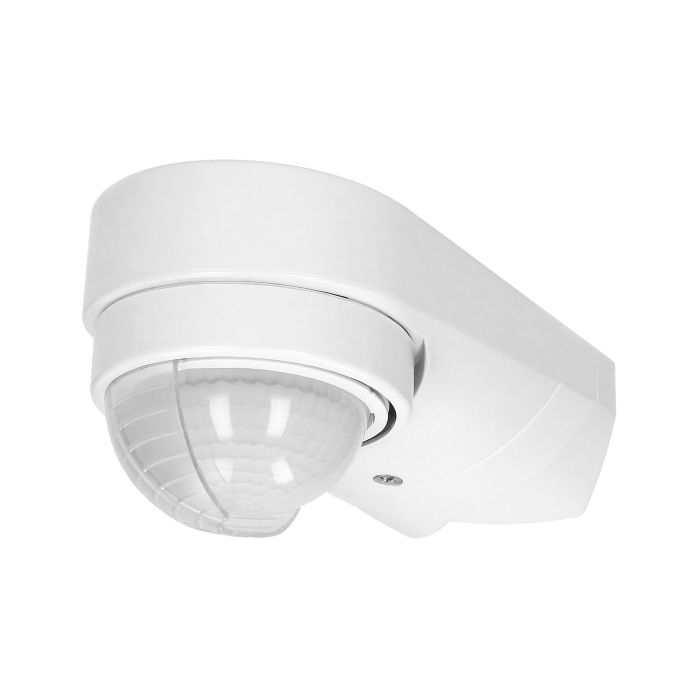

140445 - Motion sensor 240°, IP65, 2 sensors

https://b2b.electon.com/web/image/product.template/1493/image_1920?unique=afe0acd

This motion sensor is used to automatically control lighting or other electric appliances. The device is equipped with potentiometers to adjust lighting time and light intensity. It is compatible with LED diodes.

21.49 € 21.490000000000002 EUR 21.49 €

26.86 €

SKU: ORNOR-CR-265
EAN: 5900378654797
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
    General information:
    Max. load:1200
    Max. load of the LED light source:300W
    Degree of protection (IP):65
    Relay output:Yes
    Nominal voltage:230V~, 50Hz
    Presence detector:No
    Colour:white
    Installation:surface mounting
    Dimensions of the sensor - width (mm):72,7 mm
    Dimensions of the sensor - height (mm):125,2 mm
    Dimensions of the sensor - depth (mm):71.4 mm
    Detection angle:240°
    Type of sensor:Infrared
    Detection range:10 m
    Adjustable daylight sensor (LUX):Yes
    Daylight sensor adjustment range (LUX):<3—2000lux
    Adjustable time setting (TIME):Yes
    Lighting time adjustment range (TIME):min.: 10 sec. ± 3 sec., max.: 15min.±2min
    Adjustment of motion detection range (SENS):No
