- 140701 - PIR motion sensor 360° protection rating: IP 20, viewing angle: 360°, collaborates with LED lighting

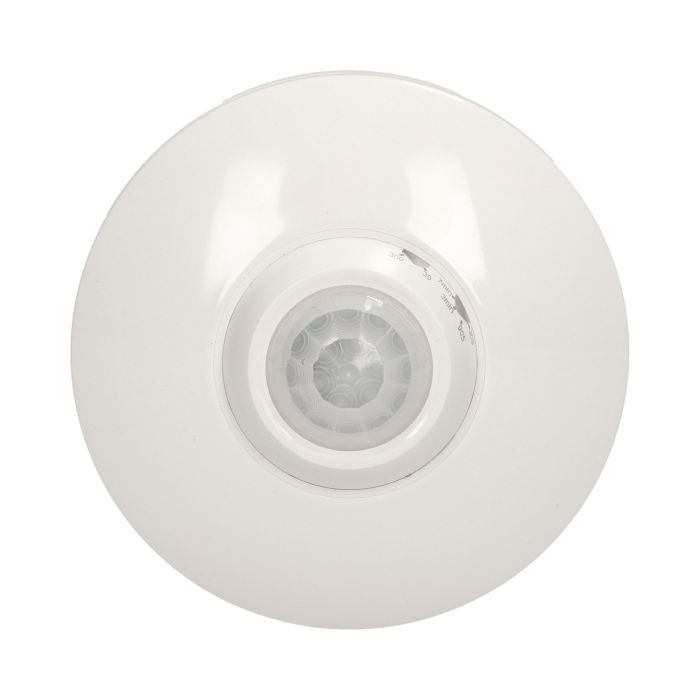

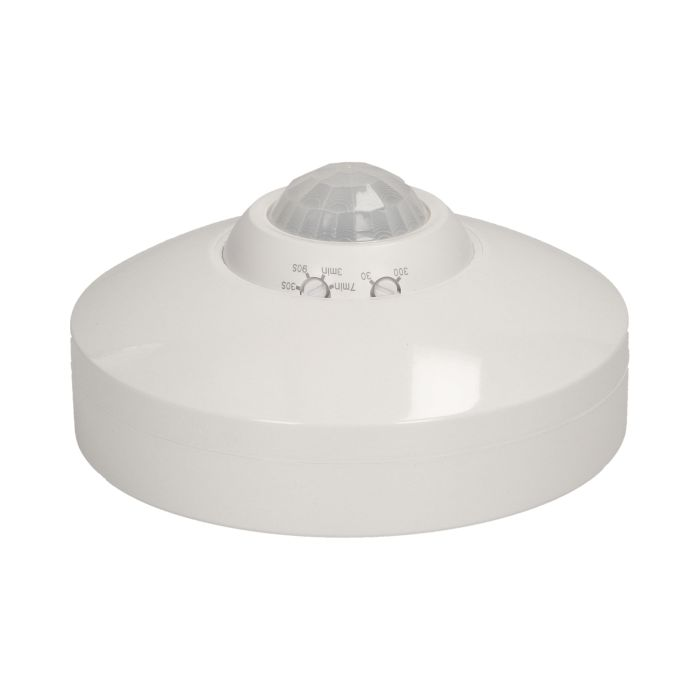

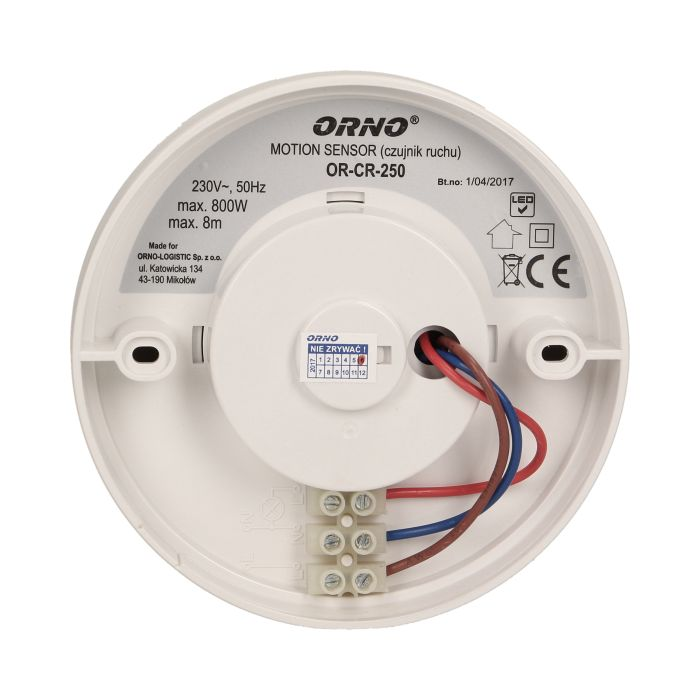

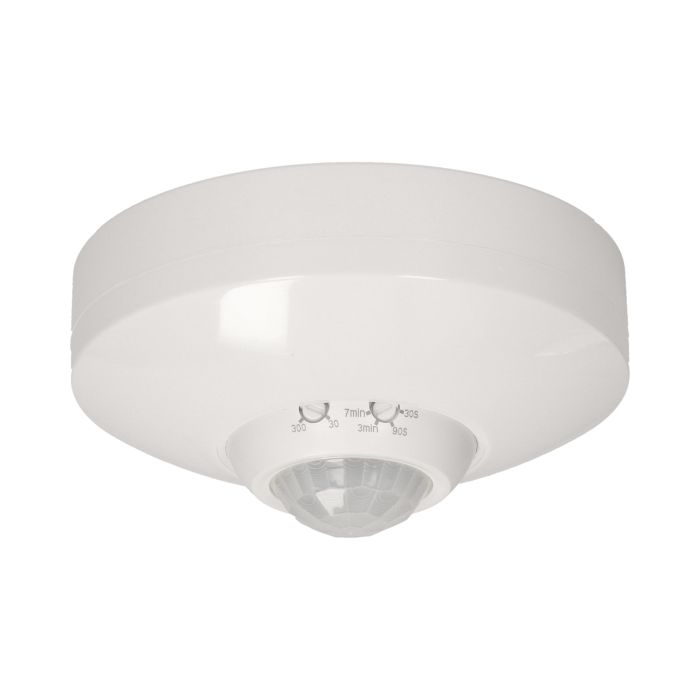

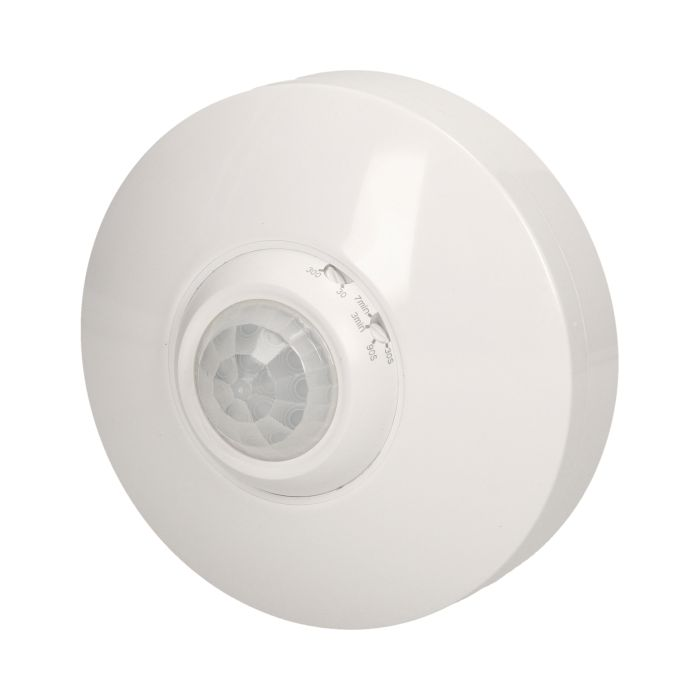

140701 - PIR motion sensor 360° protection rating: IP 20, viewing angle: 360°, collaborates with LED lighting
https://electon.odoo.com/shop/ornor-cr-250-140701-pir-motion-sensor-360deg-protection-rating-ip-20-viewing-angle-360deg-collaborates-with-led-lighting-2431 https://electon.odoo.com/web/image/product.template/2431/image_1920?unique=ac4cc30Passive infrared sensor For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Adjustable sensor's position.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
General information: | |
---|---|
Max. load: | 800 |
Max. load of the LED light source: | 200W |
Degree of protection (IP): | 20 |
Relay output: | Yes |
Nominal voltage: | 230V~, 50Hz |
Presence detector: | No |
Colour: | white |
Installation: | surface mounting |
Dimensions of the sensor - width (mm): | Ø115 mm |
Dimensions of the sensor - height (mm): | Ø115 mm |
Dimensions of the sensor - depth (mm): | 55 mm |
Detection angle: | 360° |
Type of sensor: | Infrared |
Detection range: | Ø8m m |
Adjustable daylight sensor (LUX): | Yes |
Daylight sensor adjustment range (LUX): | <3—2000lux |
Adjustable time setting (TIME): | Yes |
Lighting time adjustment range (TIME): | min.: 10 sec. ± 3 sec., max.: 15min.±2min |
Adjustment of motion detection range (SENS): | No |
