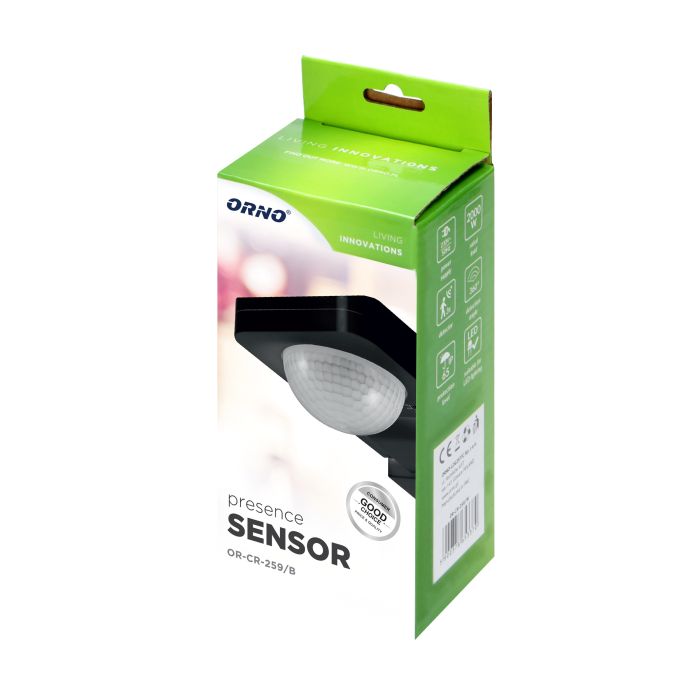

140028 - Motion sensor 360°, black 2000W, max. 20m

https://b2b.electon.com/web/image/product.template/627/image_1920?unique=3bec4be

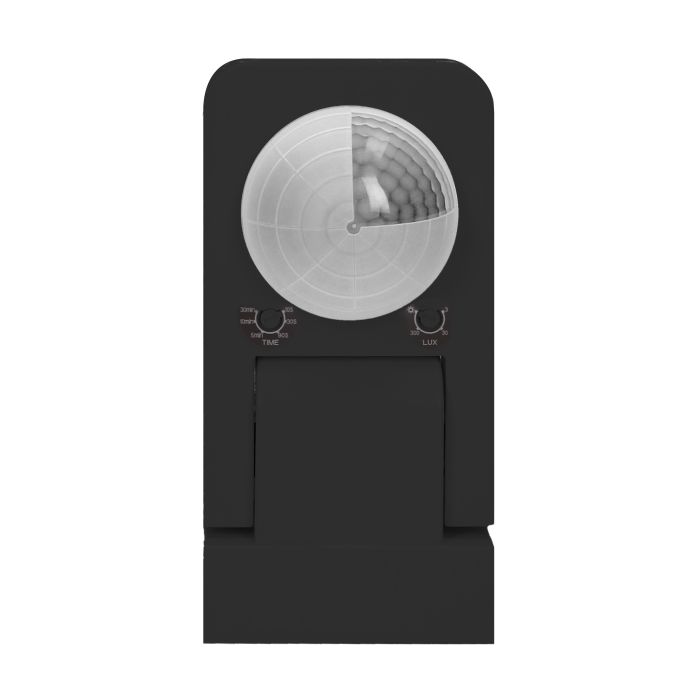

The motion sensor is designed for an automatic control of lighting or other electrical equipment. Triple system of sensors with detectors placed at a special angle provides control of the entire area. The device is suitable for use in large rooms, e.g.: warehouse halls, waiting rooms. The sensor is characterized by higher intelligence and greater accuracy, which allows detection of even the smallest movements. Potentiometers for regulation: lighting time and sensitivity of light intensity. The sensor collaborates with LED lighting.

33.72 € 33.72 EUR 33.72 €

42.15 €

SKU: ORNOR-CR-259/B
EAN: 5900378653387
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
    General information:
    Max. load:2000
    Max. load of the LED light source:500W
    Degree of protection (IP):65
    Relay output:Yes
    Nominal voltage:230V~, 50Hz
    Presence detector:Yes
    Colour:black
    Installation:surface mounting
    Dimensions of the sensor - width (mm):172,5 mm
    Dimensions of the sensor - height (mm):86,5 mm
    Dimensions of the sensor - depth (mm):56 mm
    Other features:Presence sensor
    Detection angle:360°
    Type of sensor:Infrared
    Detection range:Ø20 m
    Adjustable daylight sensor (LUX):Yes
    Daylight sensor adjustment range (LUX):<3—2000lux
    Adjustable time setting (TIME):Yes
    Lighting time adjustment range (TIME):min: 10 sec. ± 3 sec.; max: 30 min. ± 2 min.
    Adjustment of motion detection range (SENS):No
