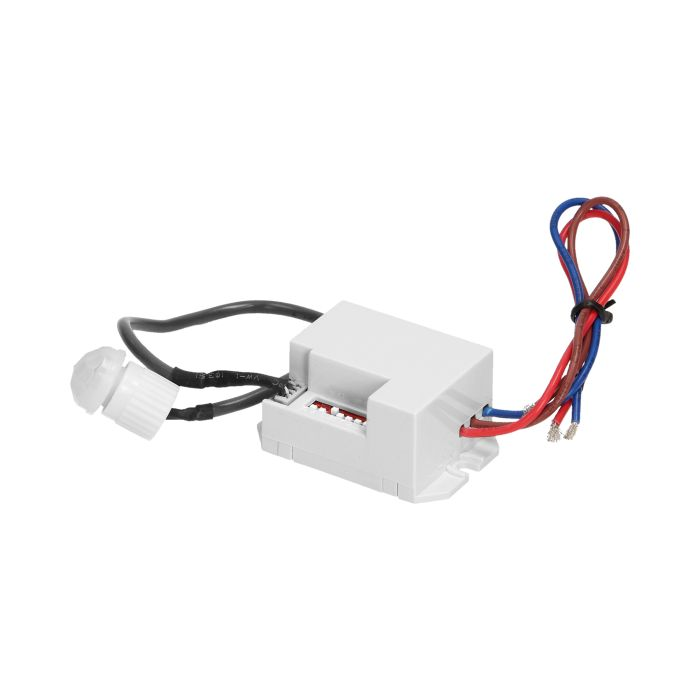

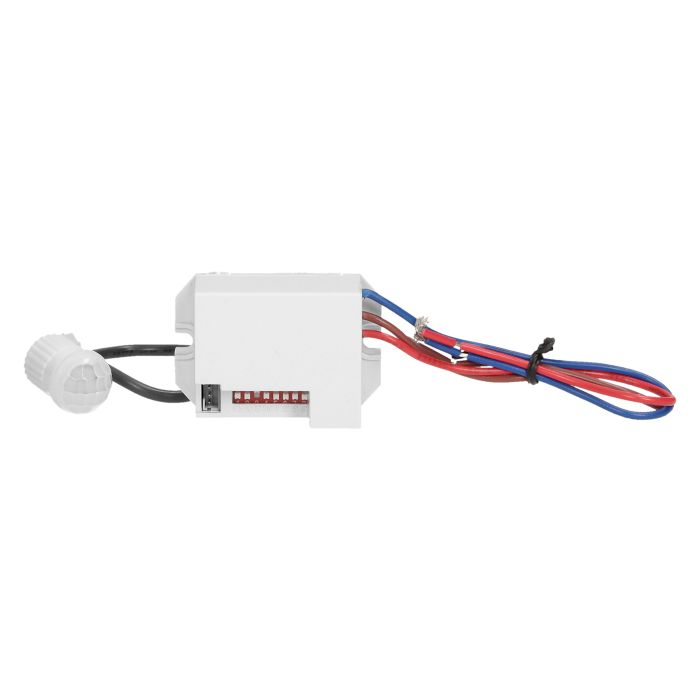

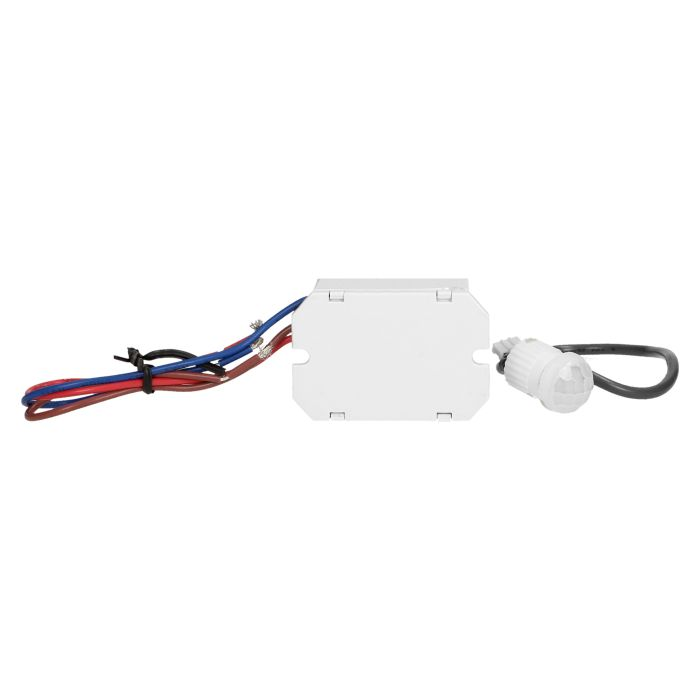

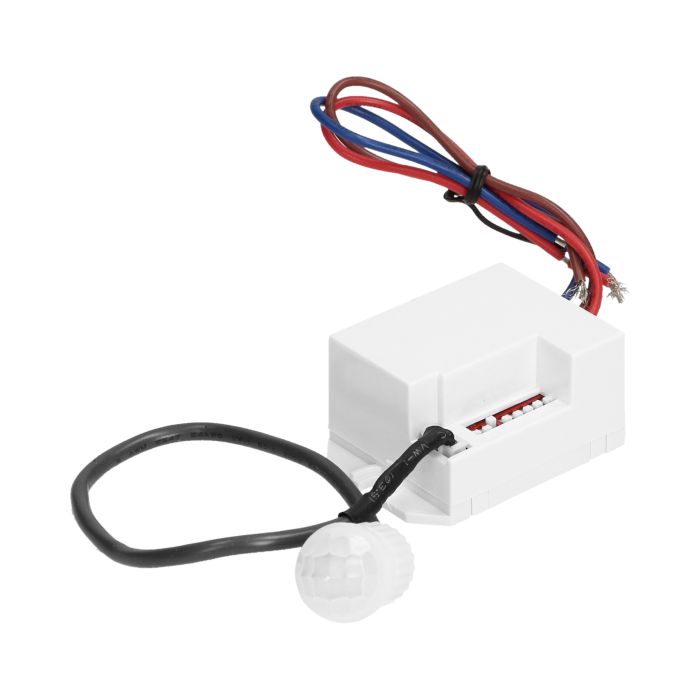

140461- PIR motion sensor 360° with external probe
https://electon.odoo.com/shop/ornor-cr-211-140461-pir-motion-sensor-360deg-with-external-probe-1509 https://electon.odoo.com/web/image/product.template/1509/image_1920?unique=b0f7ecfPassive infrared sensor with external probe For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX).
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
General information: | |
---|---|
Max. load: | 800 |
Max. load of the LED light source: | 200W |
Degree of protection (IP): | 20 |
Relay output: | Yes |
Nominal voltage: | 230V~, 50Hz |
Presence detector: | No |
Colour: | white |
Installation: | surface mounting |
Dimensions of the sensor - width (mm): | 26 mm |
Dimensions of the sensor - height (mm): | 37 mm |
Dimensions of the sensor - depth (mm): | 56 mm |
Working temperature: | -20℃~+40℃ |
Detection angle: | 360° |
Dimensions of the mounting hole: | Ø12 mm |
Type of sensor: | Infrared |
Detection range: | Ø3 or Ø6 m |
Adjustable daylight sensor (LUX): | Yes |
Daylight sensor adjustment range (LUX): | 10lux or 2000lux |
Adjustable time setting (TIME): | Yes |
Lighting time adjustment range (TIME): | 5 sec., 30 sec., 1 min., 3 min., 5 min., 8 min. |
Adjustment of motion detection range (SENS): | Yes |
