140033-Motion sensor for installation box, 160°, IP20
https://www.ledvista.com/shop/ornor-cr-261-140033-motion-sensor-for-installation-box-160deg-ip20-632 https://www.ledvista.com/web/image/product.template/632/image_1920?unique=9eb507b
(0 review)

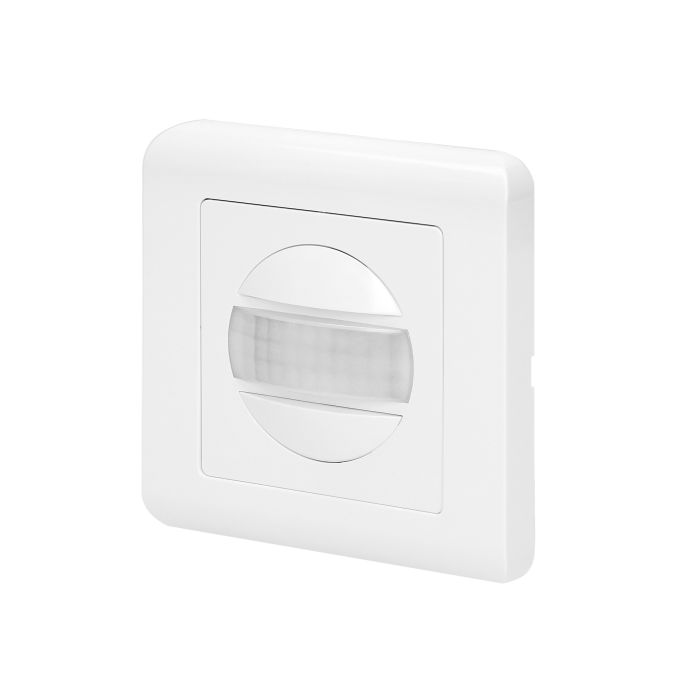

This motion sensor is used to automatically control lighting or other electric appliances. It operates based on a two-wire system and can be flush-mounted inside an installation box of Ø60 mm diameter. The device is equipped with potentiometers to adjust lighting time and light intensity.
Orno
ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
General information: | |
---|---|
Max. load: | 1200 |
Max. load of the LED light source: | 300W |
Degree of protection (IP): | 20 |
Relay output: | Yes |
Nominal voltage: | 230V~, 50Hz |
Presence detector: | No |
Colour: | white |
Installation: | flush mounting |
Dimensions of the sensor - width (mm): | 75 mm |
Dimensions of the sensor - height (mm): | 75 mm |
Dimensions of the sensor - depth (mm): | 50 mm |
Working temperature: | -20℃~+40℃ |
Detection angle: | 160° |
Dimensions of the mounting hole: | Ø60 mm |
Type of sensor: | Infrared |
Detection range: | 9 m |
Adjustable daylight sensor (LUX): | Yes |
Daylight sensor adjustment range (LUX): | <3—2000lux |
Adjustable time setting (TIME): | Yes |
Lighting time adjustment range (TIME): | min: 10 sec. ± 3 sec.; max: 7 min. ± 2 min. |
Adjustment of motion detection range (SENS): | No |
