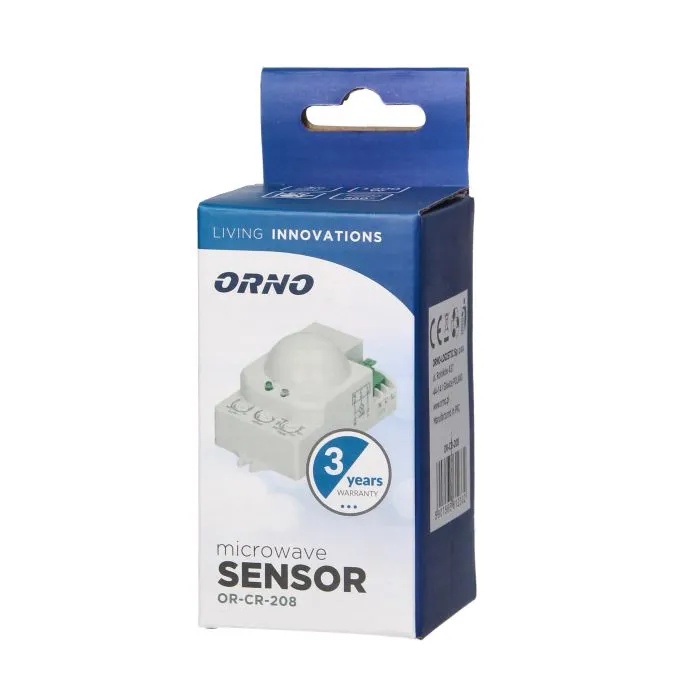

- 140726 - Microwave sensor 360° 1200W, 5.8GHz, IP20, detection range 360 degree; works with LEDs
140726 - Microwave sensor 360° 1200W, 5.8GHz, IP20, detection range 360 degree; works with LEDs
https://b2b.electon.com/shop/ornor-cr-208-140726-microwave-sensor-360deg-1200w-5-8ghz-ip20-detection-range-360-degree-works-with-leds-2438 https://b2b.electon.com/web/image/product.template/2438/image_1920?unique=d410fc1Microwave (radar) motion sensor with low power emission For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and the range of motion detection (SENS) Designed for installation in luminaires Built-in twilight sensor and timer Temperature does not affect the detection.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
General information: | |
---|---|
Max. load: | 1200 |
Max. load of the LED light source: | 300 W |
Degree of protection (IP): | 20 |
Relay output: | Yes |
Nominal voltage: | 230V~, 50Hz |
Presence detector: | No |
Colour: | white |
Installation: | surface mounting |
Dimensions of the sensor - width (mm): | 46,53 mm |
Dimensions of the sensor - height (mm): | 77,7 mm |
Dimensions of the sensor - depth (mm): | 44 mm |
Working temperature: | -20℃~+50℃ |
Detection angle: | 360° |
Type of sensor: | microwave |
Detection range: | 1-8m m |
Adjustable daylight sensor (LUX): | Yes |
Daylight sensor adjustment range (LUX): | <3—2000lux |
Adjustable time setting (TIME): | Yes |
Lighting time adjustment range (TIME): | min: 10 sek. ± 3 sek.; max: 12 min. ± 1 min. |
Adjustment of motion detection range (SENS): | Yes |
