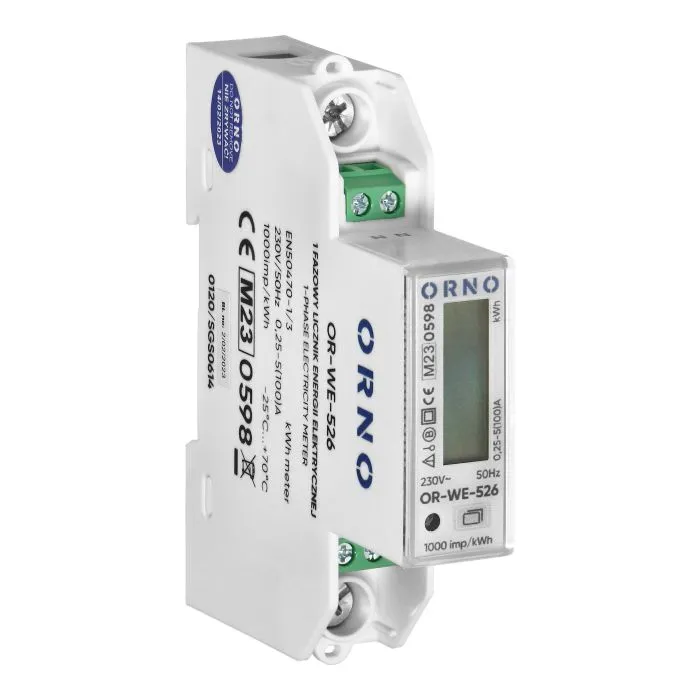

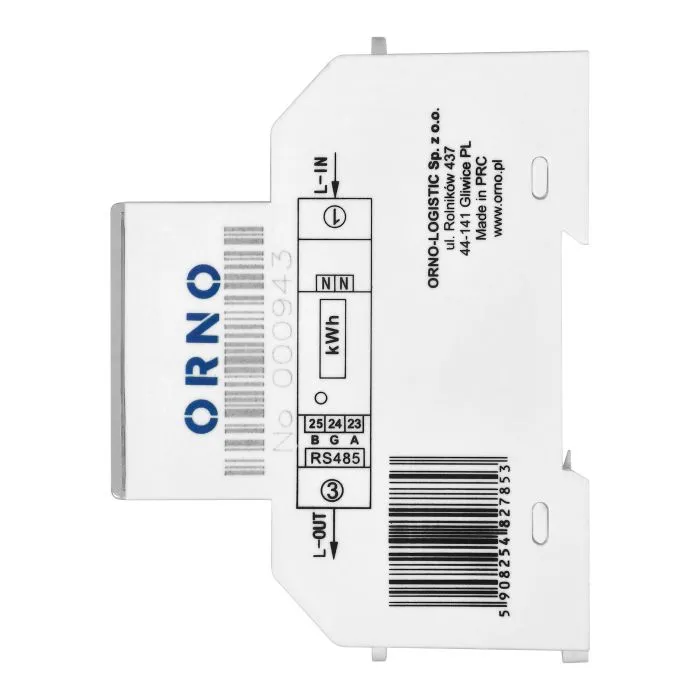

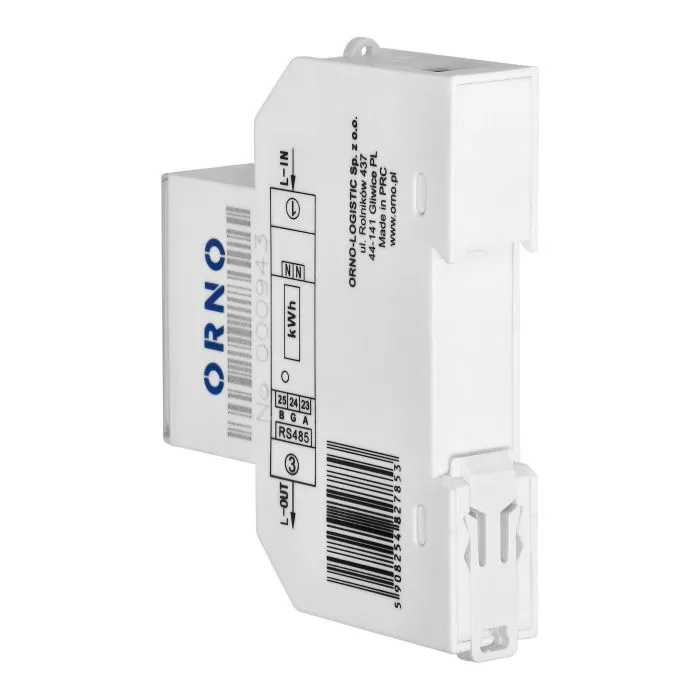

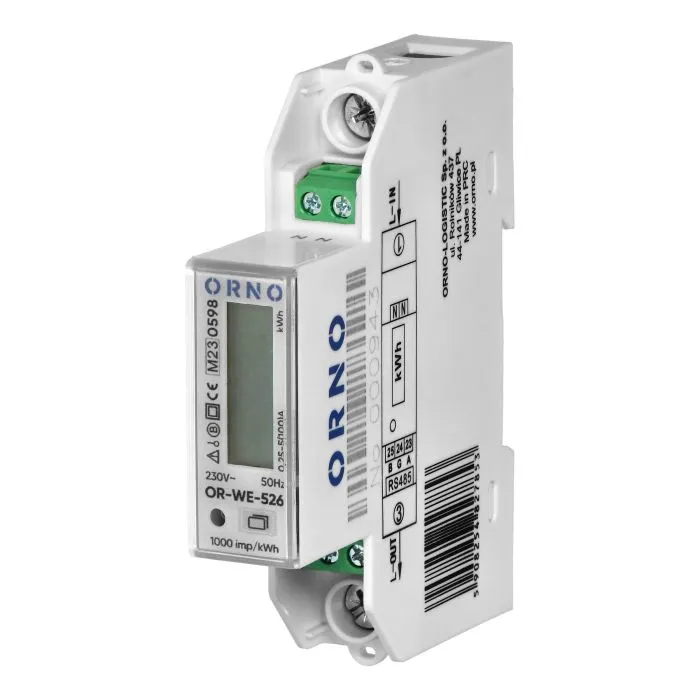

149009 - 1phase electricity meter, bidirectional, multitariff, 100A, RS485 port, MID, 1 module, DIN TH35mm, PVready
https://www.ledvista.com/shop/ornor-we-526-149009-1phase-electricity-meter-bidirectional-multitariff-100a-rs485-port-mid-1-module-din-th35mm-pvready-2627 https://www.ledvista.com/web/image/product.template/2627/image_1920?unique=aa5dae0
(0 beoordeling)
Orno
ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
| General information: | |
|---|---|
| Backlight: | Yes |
| Type: | 1-phase |
| Base current (lb): | 5 A |
| Maximum current (lmax): | 100 A |
| Degree of protection (IP): | 51 |
| Min. current: | 0.25 A |
| Pulse frequency: | 1000 imp/kWh |
| Class of measurement accuracy: | B |
| Pulse output: | No |
| Multi-tariff: | Yes |
| Dimensions - depth: | 72 mm |
| Number of modules: | one |
| Dimensions - width: | 18 mm |
| Number of digits on a display: | 5 + 2 |
| Dimensions - height: | 95 mm |
| Other features: | lithium battery |
| Compliance with mid certificate (2014/32/eu): | Yes |
| Communication protocol: | Modbus |
| Ports: | RS485 |
