  2. 140808 - 1-phase energy meter with additional calculator, 80A current: 5(80)A; protection rating: IP20; installation on 35mm DIN rail

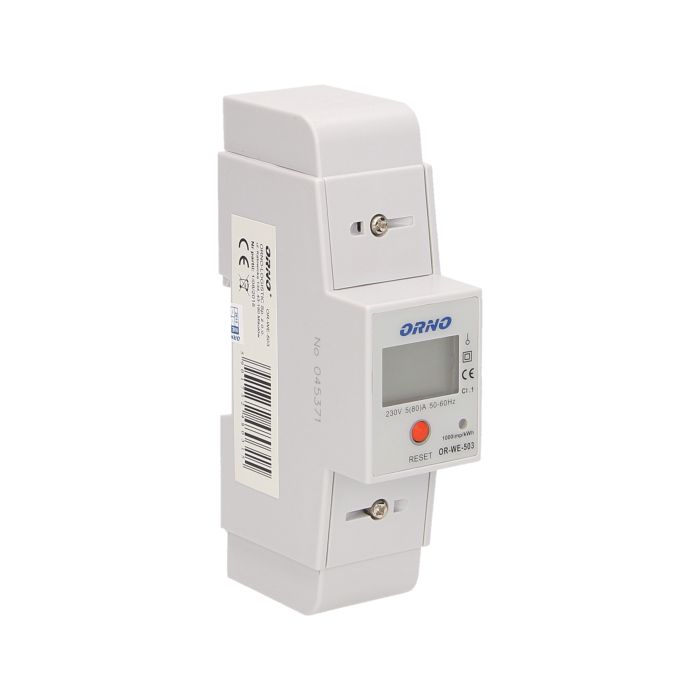

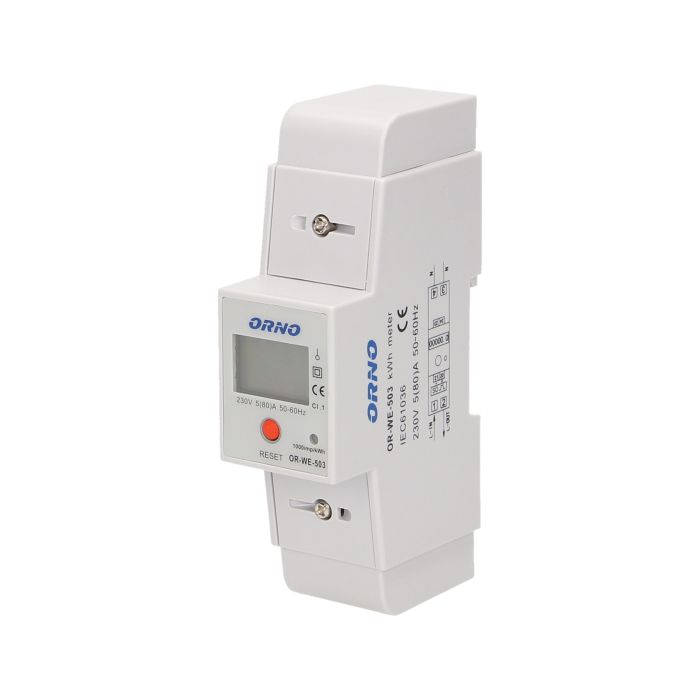

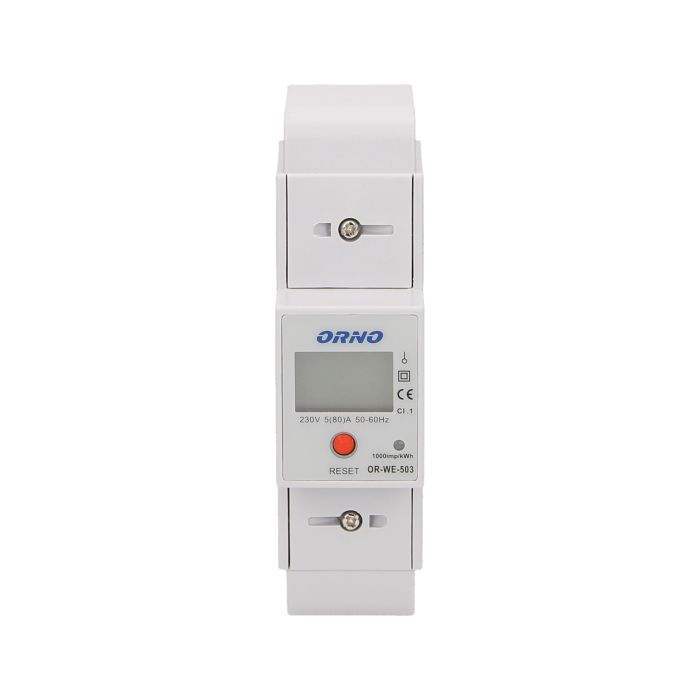

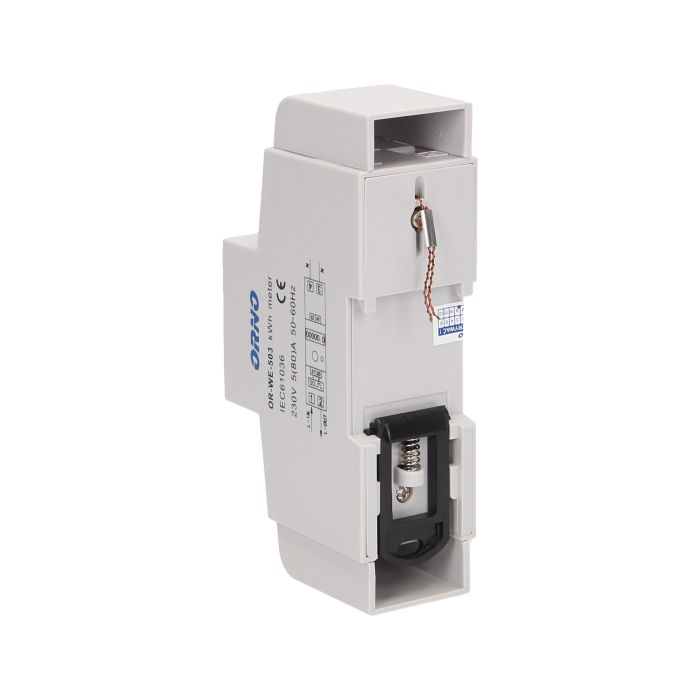

140808 - 1-phase energy meter with additional calculator, 80A current: 5(80)A; protection rating: IP20; installation on 35mm DIN rail

https://electon.odoo.com/web/image/product.template/2616/image_1920?unique=9cf7601

Device for making indications in kWh. A special electronic circuit, by the flow of current and applied voltage generates pulses in proportion to the energy consumed. Phase energy consumption is signaled by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (5 + 1). Equipped with an additional indicator with the possibility of erasing. Pulse output: voltage: 27V; current: 27mA; current pulse: 90ms; maximum cable length: 20 m; connection terminals 20 and 21; maximum value: max voltage 60VDC; maximum current of 50mA.

39.20 € 39.2 EUR 39.20 €

49.00 €

SKU: ORNOR-WE-503
EAN: 5901752480315
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
    General information:
    Backlight:Yes
    Type:1-phase
    Base current (lb):5 A
    Maximum current (lmax):80 A
    Degree of protection (IP):20
    Pulse frequency:1000 imp/kWh
    Class of measurement accuracy:one
    Pulse output:Yes
    Multi-tariff:No
    Dimensions - depth:129 mm
    Number of modules:2
    Dimensions - width:36,5 mm
    Dimensions - height:65 mm
    Other features:an additional indicator with the possibility of deleting
    Compliance with mid certificate (2014/32/eu):No
    Communication protocol:none
    Display:5+1 "
    Ports:none
