  2. 140311- Video doorphone set, handset-free with multicolor 7" LCD screen, proximity tags reader and intercom function, surface-mounted-ORN

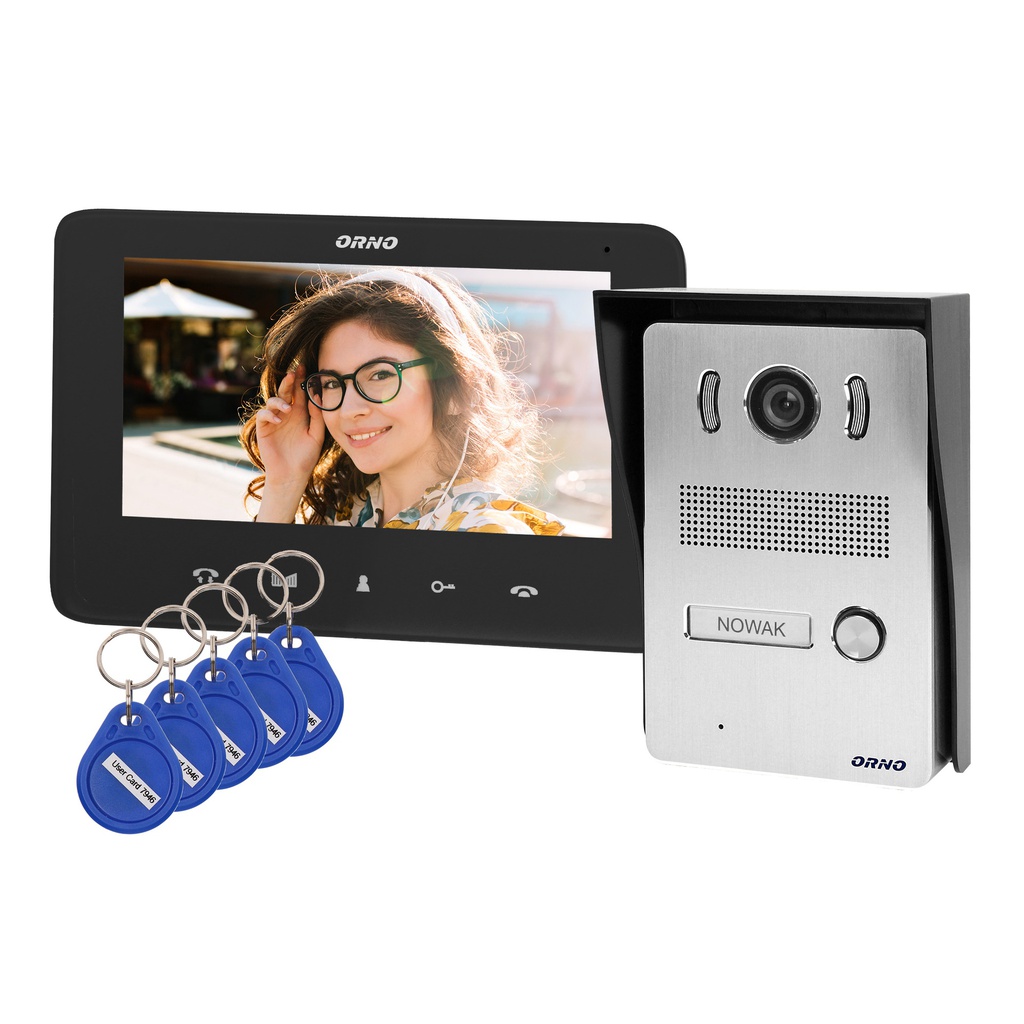

140311- Video doorphone set, handset-free with multicolor 7" LCD screen, proximity tags reader and intercom function, surface-mounted-ORN

https://b2b.electon.com/web/image/product.template/1050/image_1920?unique=e04fa00

Video-doorphone set includes multicolour, ultra-flat 7" LCD monitor with a touch panel and backlit buttons. Monitor parameters (brightness and colour, speech and ringtone volume) can be adjusted. There are 16 ringtones to choose from. The outdoor unit with a CMOS camera is suitable for surface mounting. It has got a protective roof, a name plate and bright LED diodes that provide excellent night vision. The lock can be released with the use of a proximity tag. Additionally, the set can support gate opening and, if you connect an additional monitor to it, you can activate intercom function. DC power source from power supply unit to power outlet (15V DC) or optionally from DIN rail power supply (OR-VID-VP-1009ZD). Electric strike is suitable for 12V DC and power consumption of max. 300mA. It does not require additional power supply.

387.46 € 387.46000000000004 EUR 387.46 €

484.32 €

SKU: ORNOR-VID-VP-1069/B
EAN: 5908254800610
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.

    Technical specyfication

    General information:
    Type:single-family
    Number of wires:5+2
    Type of power supply:mains power supply
    Type of transmission:wired
    Possibility of extension by an additional external panel:No
    Possibility of extension by an additional monitor:Yes
    Possibility of extension by an additional video uniphone:No
    Gate opening:Yes
    Current supply of the electric strike:power supply from a videodoorphone
    Connection system:5-wire
    Possibility of extension by an additional cctv camera:No
    Monitor:
    SD card reader:No
    Number of ringtones:16
    Operation:via speakerphone
    Display:7 "
    Resolution of the monitor's screen:480 x 800
    Memory:No
    Intercom function:Yes
    Touch screen:No
    Dimensions of the of the monitor - width (mm):200 mm
    Dimensions of the of the monitor - height (mm):138 mm
    Dimensions of the of the monitor - depth (mm):23 mm
    External panel with a camera:
    Resolution of the camera:420 TVL
    Vertical/horizontal camera's view angle:65° / 90°
    Card and proximity tags reader:Yes
    Type of camera:traditional lens
    Installation:surface mounting
    Keypad:No
    Night lighting:white LED
    Dimensions of the external panel - depth:57 mm
    Dimensions of the external panel - width:109 mm
    Dimensions of the external panel - height:158 mm
