  2. 140071-DIN rail power adaptor, 24W 24VDC, 1A, width: 2 units-ORN

140071-DIN rail power adaptor, 24W 24VDC, 1A, width: 2 units-ORN

https://b2b.electon.com/web/image/product.template/671/image_1920?unique=4cd80ee

Highly efficient and reliable DIN rail power adaptor of 24W max. load and 24V DC output voltage, which can be adjusted. It has been developed for DIN rail installation and can be used in vast number of applications, e.g. industrial applications, low voltage installations, such as CCTV or alarm systems. This power adaptor includes: overload protection, anti-surge protection and overvoltage protection. An integrated diode indicates activation of the device.

28.31 € 28.310000000000002 EUR 28.31 €

35.39 €

SKU: ORNOR-PSU-1647
EAN: 5908254803888
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.

    Technical specyfication

    General information:
    Rated power:24 W
    Output voltage:24V DC V
    Input voltage:100-230V 50-60Hz
    Degree of protection (IP):20
    Output current:1 A
    Max. short time current rating:1,25A
    Standby power consumption:0.3 W
    Over voltage category:III
    Installation:a DIN rail
    Dimensions - depth:35 mm
    Dimensions - width:90 mm
    Dimensions - height:58 mm


    Product Image

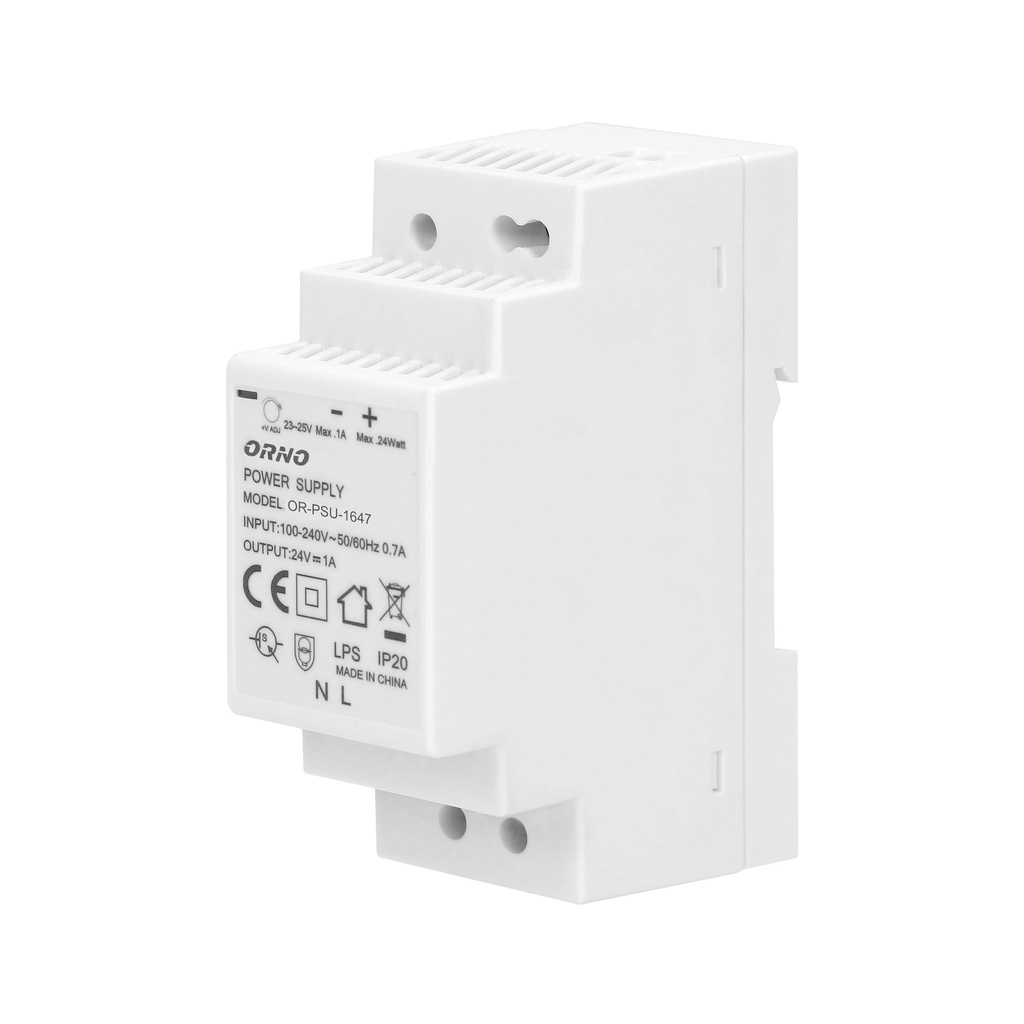

    140071-DIN rail power adaptor, 24W 24VDC, 1A, width: 2 units-ORN
