  2. 140839 - Installation relay, 1P, 16A, 12-230 VUC

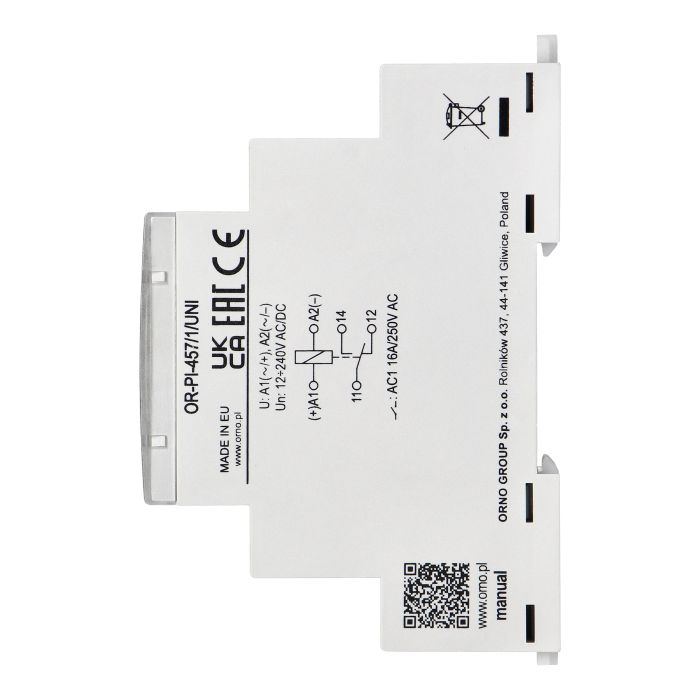

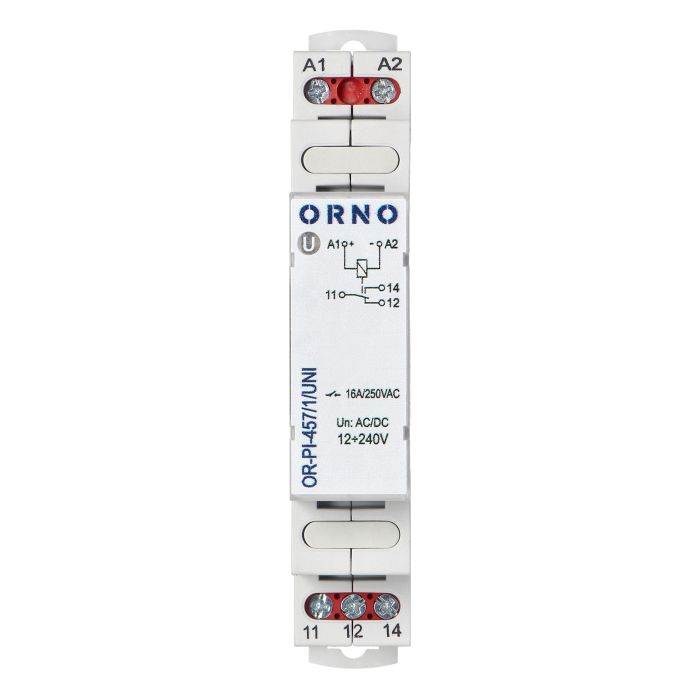

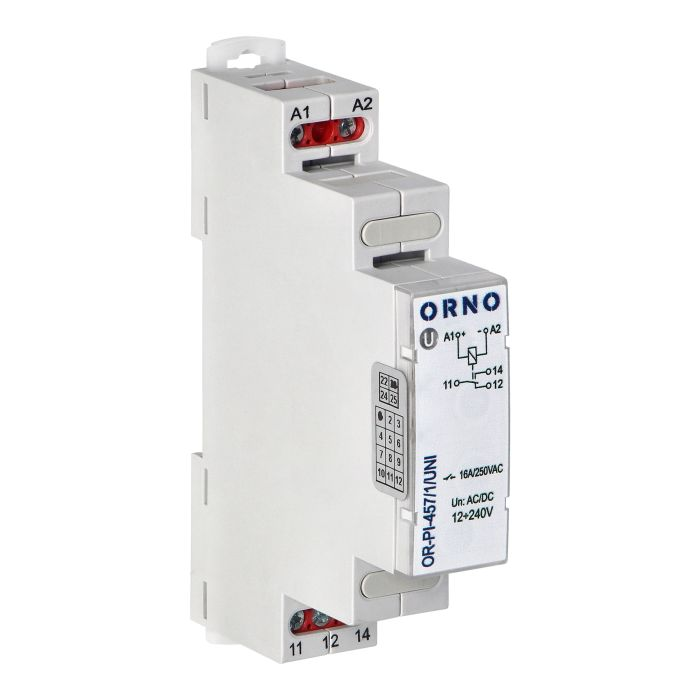

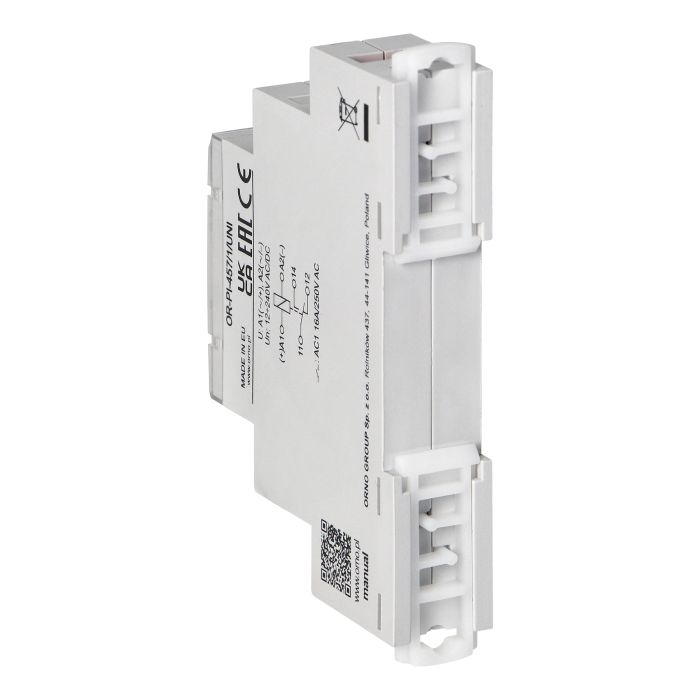

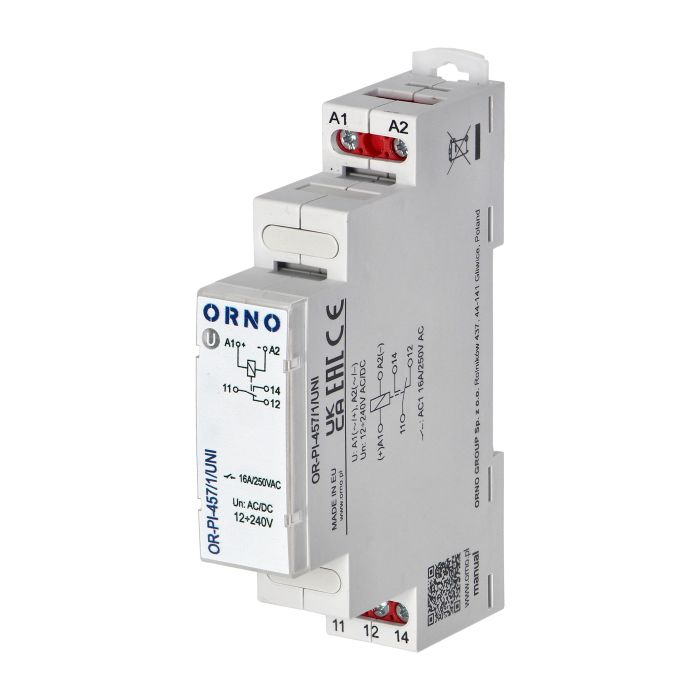

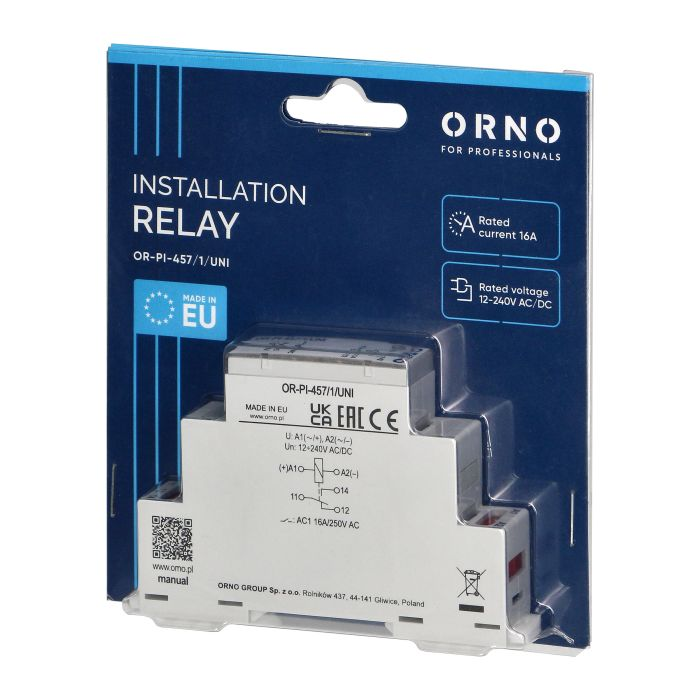

140839 - Installation relay, 1P, 16A, 12-230 VUC

https://b2b.electon.com/web/image/product.template/2742/image_1920?unique=0ff124c

Installation relay, 1P 16A, 12-230 VUC.

30.24 € 30.240000000000002 EUR 30.24 €

37.80 €

SKU: ORNOR-PI-457/1/UNI
EAN: 5904988905010

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
    General information:
    Storage temperature:from -40°C to +70°C
    Number and type of contacts:1P
    Contacts material:AgSnO2
    Rated load AC1:16 A / 250 V AC
    Rated load DC1:16 A / 24 V DC
    Degree of protection (IP):20
    Maximum switching capacity in category AC1:4000 VA
    Contact resistance:≤ 100 mΩ
    Maximum switching frequency:600 cykli/h
    Nominal voltage:12 do 240 V
    Operating voltage range:0,85 - 1,1 Un
    Overvoltage category:III
    Dimensions - depth:90 mm
    Dimensions - width:17.5 mm
    Case flammability standard UL94:V0
    Switching life AC1:> 0,5 x 10^5
    Dimensions - height:64.6 mm
    Working temperature:-20℃~+50℃
    Relative humidity:do 85%
    imapct resistance:15 g
    vibration resistance:9g / 5g
    Net weight:60 g
