140937 - AQUATIC MINI IP54 Single-pole switch, white/black, 10 pcs
https://b2b.electon.com/shop/ornor-oe-7300-wb-10-140937-aquatic-mini-ip54-single-pole-switch-white-black-10-pcs-2793 https://b2b.electon.com/web/image/product.template/2793/image_1920?unique=3501defAquatic Mini, is the sister brand of the classic Aquatic designed for special tasks.
Due to its small size, it is suitable for use wherever space is at a premium and protection against dust and water jets is required - the Aquatic features protection class IP54.
The accessories in this range consist of sockets and switches, providing the comfort of assembling components for an entire room or even building with a consistent aesthetic.

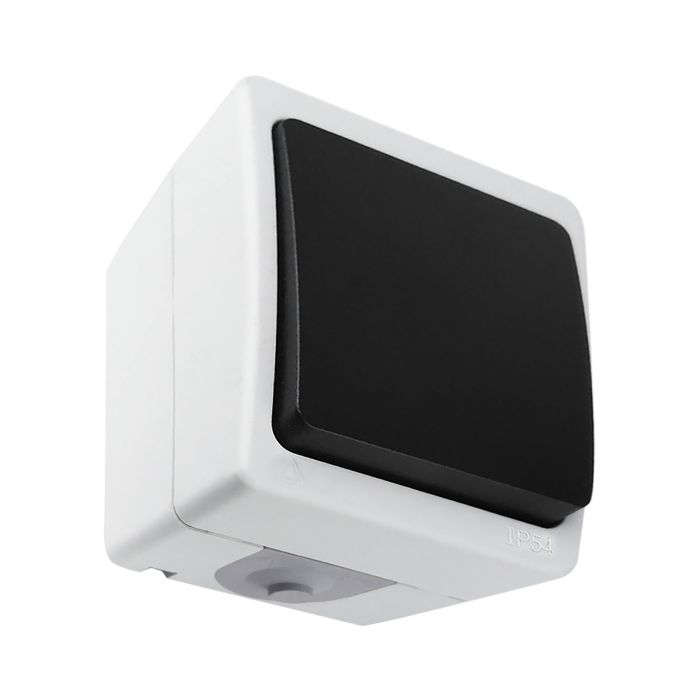

AQUATIC MINI Single-pole switch, is the simplest basic switch which operates on a single circuit and to which, for example, a single lamp can be connected. It is small, so it fits into narrow recesses or on a narrow section of wall near a door.
In addition, the MINI series offers an aesthetically pleasing design that fits in with both commercial and industrial interiors. Well-fitted switch buttons and housing elements ensure safe use for a long time. Single-pole switch in black and white. Package of 10 pcs.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
General information: | |
---|---|
Nominal voltage [V]: | 230 |
Mounting method: | Surface mounting |
Assembly arrangement: | Base element with complete housing |
Method of operation: | Shuttle button |
Colour: | Other |
Connection type: | Plug-in, self-locking |
Illumination: | NO |
Surface protection: | Basic state |
Rated current [A]: | 10 |
Material quality: | Thermoplastic |
Material: | Plastic |
Type of fastening: | Screw fixing |
Wiring system: | 1-pole switch |
Number of rockers: | one |
Surface finishing: | Mat |
Suitable for degree of protection [IP]: | IP54 |
Width of device [mm]: | 54 |
Height of device [mm]: | 65 |
Depth of device [mm]: | 38 |
Label space/information surface: | NO |
Quantity: | 10 |
