  2. 140390- 2-wire doorphone, surface mounted, SAGITTA MULTI

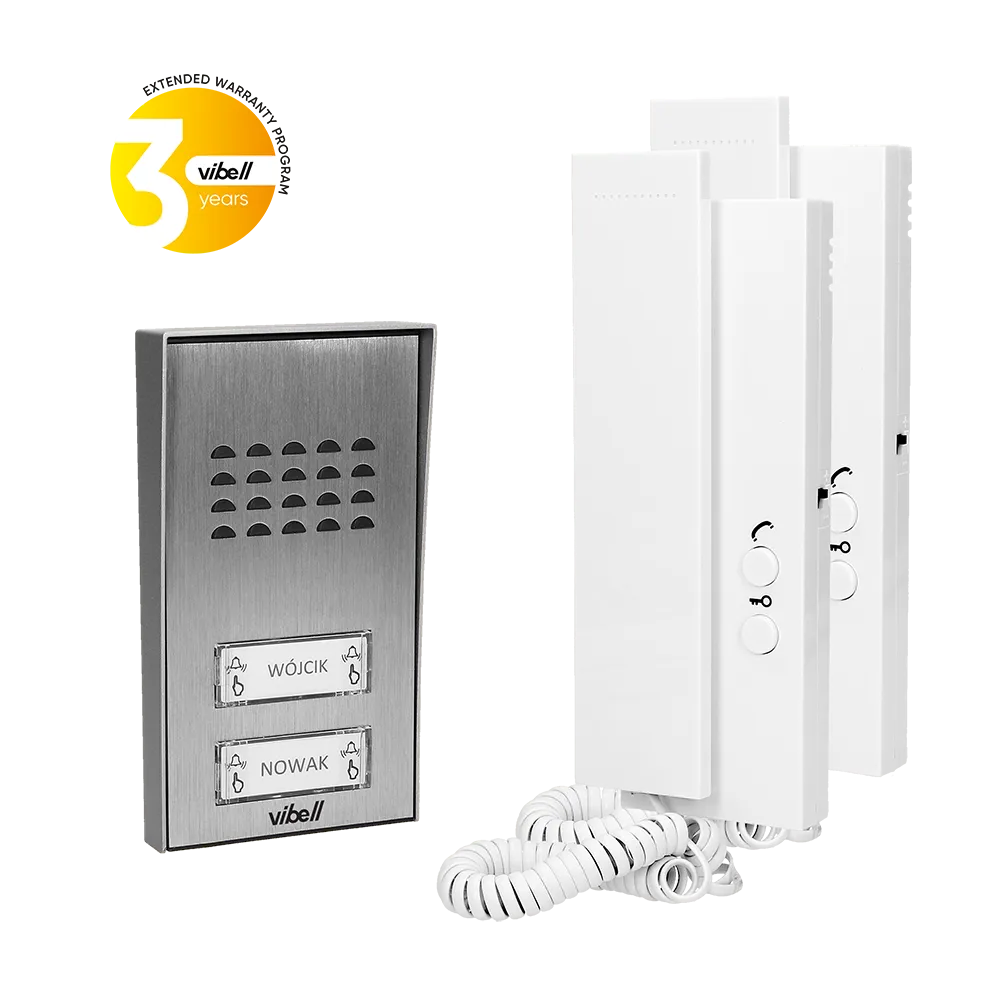

140390- 2-wire doorphone, surface mounted, SAGITTA MULTI

https://b2b.electon.com/web/image/product.template/1396/image_1920?unique=9f0e7e7

External panel requires surface mounting (protective rain cover included) Backlit place for name The duplex transmission allows trouble-free conversation Classic and elegant uniphone equipped with a handset Volume adjustment Additional gate control function Direct control of an electric strike without any additional transformer The intercom function (after the application of an additional uniphone) enables communication between uniphones.

176.80 € 176.8 EUR 176.80 €

221.00 €

SKU: ORNOR-DOM-SG-919
EAN: 5901752484092
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Vibell

    Technical specyfication

    General information:
    Type:multi-family
    Installation technique:2-wire
    Type of transmission:wired
    Current supply:DIN rail power supply
    Number of indoor stations:2
    Expandable to max. number of indoor stations:8
    Number of outdoor stations:1
    Expandable to max. number of outdoor stations:1
    Operation door lock:Yes
    Current supply of the electric strike:from the external panel
    With automatic door opener:Yes
    Indoor panel:
    Mounting method - indoor station:Surface mounted (plaster)
    Internal communication:Yes
    Number of ringtones:1
    Loudness control:Yes
    Material:Plastic
    Indoor station colour:White
    Width:70 mm
    Height:210 mm
    Depth:40 mm

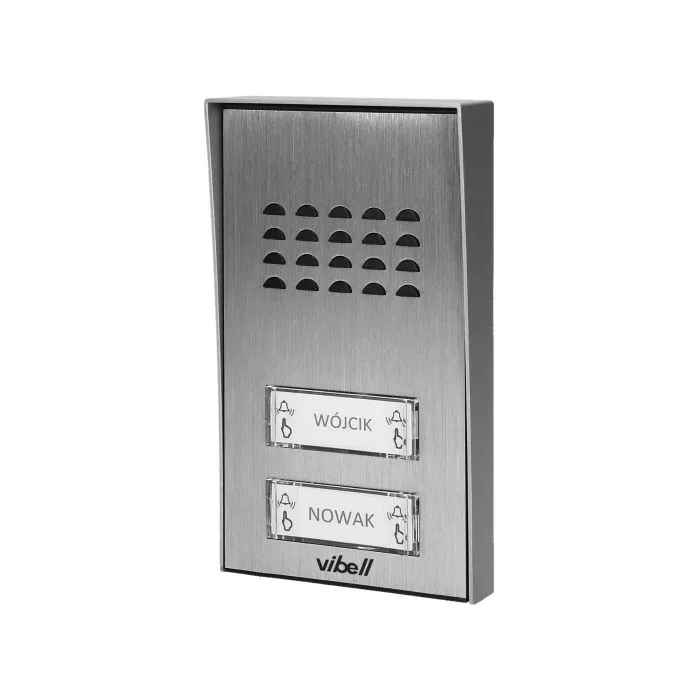

    External panel:
    Number of call buttons:2
    Mounting method:Surface mounted (plaster)
    Label space/information surface:Yes
    With cover:Yes
    Degree of protection (IP):IP54
    Width:95 mm
    Height:120 mm
    Depth:30 mm
