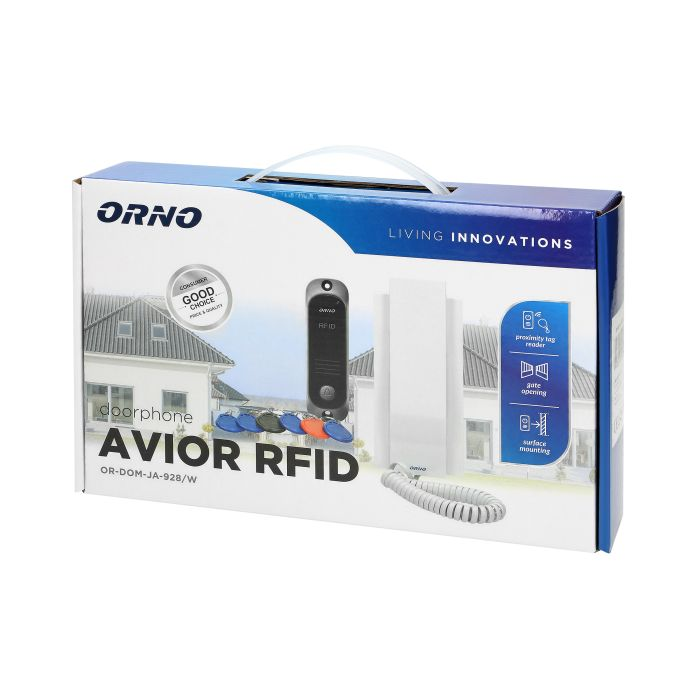

  2. 140550 - AVIOR single family doorphone set, white with RFID reader and intercom function, the set enables easy electric lock opening with proximity tags and it has an additional push-button to open the gate from the uniphone.

140550 - AVIOR single family doorphone set, white with RFID reader and intercom function, the set enables easy electric lock opening with proximity tags and it has an additional push-button to open the gate from the uniphone.

https://b2b.electon.com/web/image/product.template/2284/image_1920?unique=daecadf

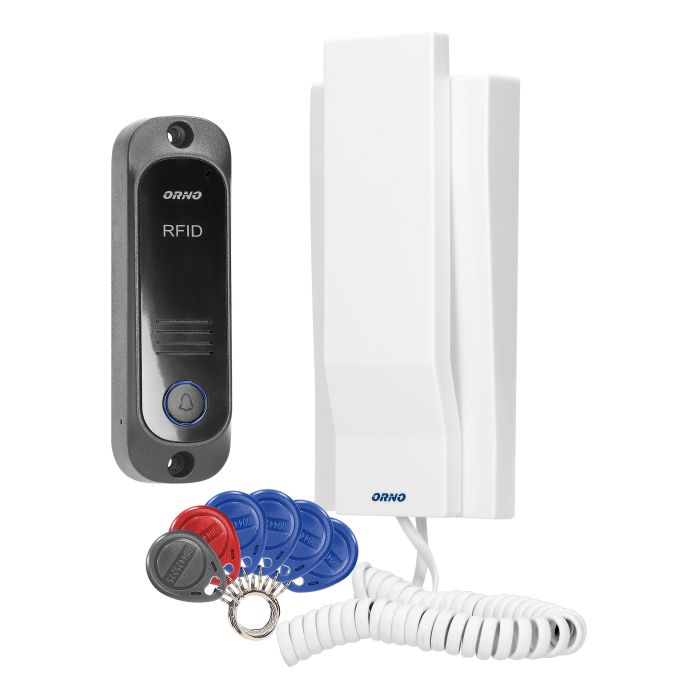

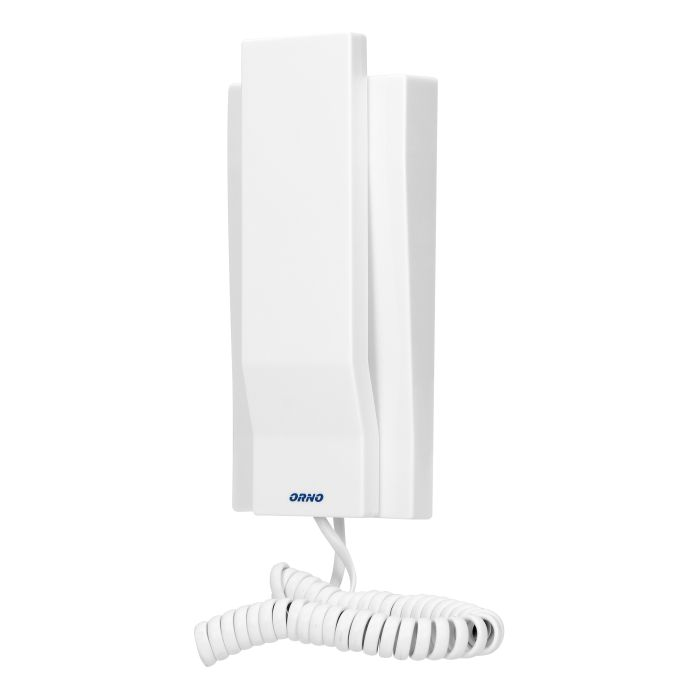

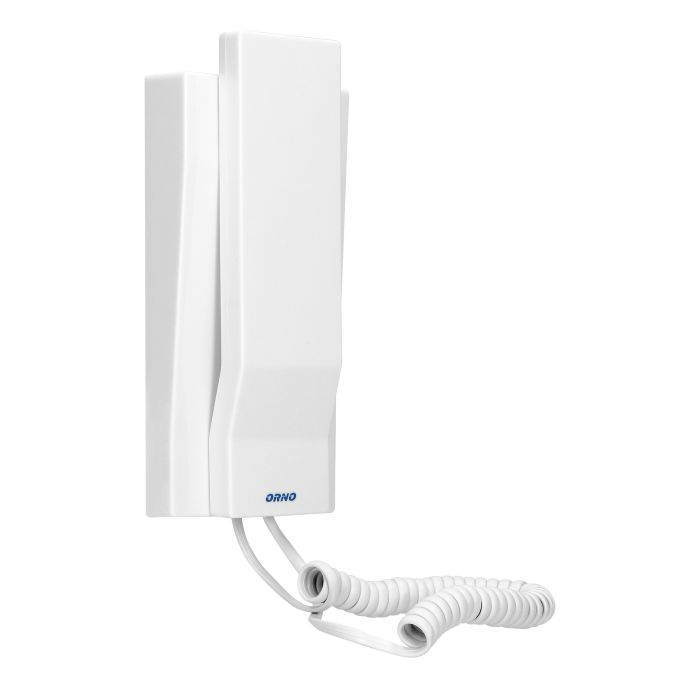

AVIOR single-family audio doorphone set includes a compact outdoor panel, ideal for installation on narrow posts and an elegant handset uniphone which integrates ideally with any interior. The set can be expanded with an additional external panel and an additional uniphone, thus enabling internal intercom communication between two uniphones (intercom) and remote communication and control of the entrance from different places in the house. Intuitive and easy connection allows installation by the user. The set enables easy electric lock opening with proximity tags and it has an additional push-button to open the gate from the uniphone.

97.28 € 97.28 EUR 97.28 €

121.60 €

SKU: ORNOR-DOM-JA-928/W
EAN: 5908254800627
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
    General information:
    Type:single-family
    Current supply:Mains power
    Nominal voltage [V]:13,5V DC
    Type of transmission:wire
    Installation technique:Multi-wire system
    Number of wires (*from outdoor station to electric strike):3 (+2)*
    Number of indoor stations:one
    Number of outdoor stations:one
    Expandable to max. number of indoor stations:2
    Expandable to max. number of outdoor stations:2
    Operation door lock:so
    Current supply of the electric strike:no additional power supply required
    :with an external panel
    With automatic door opener:so

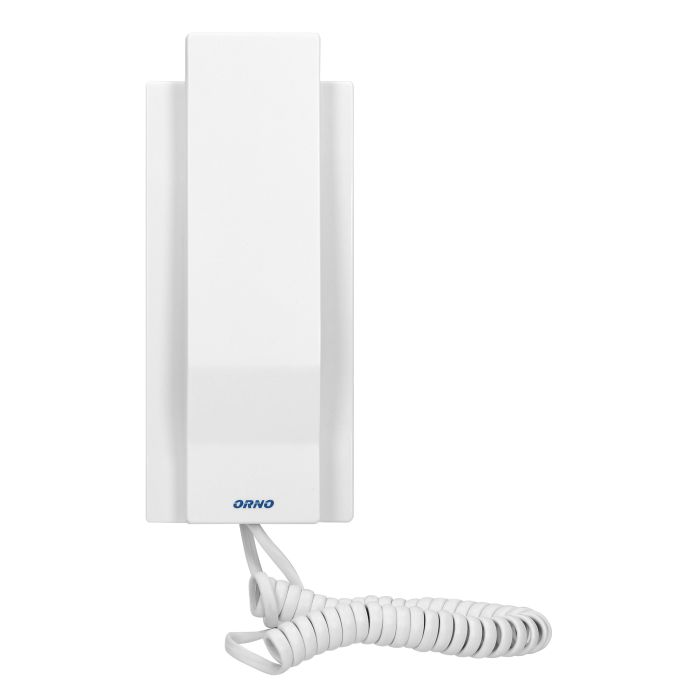

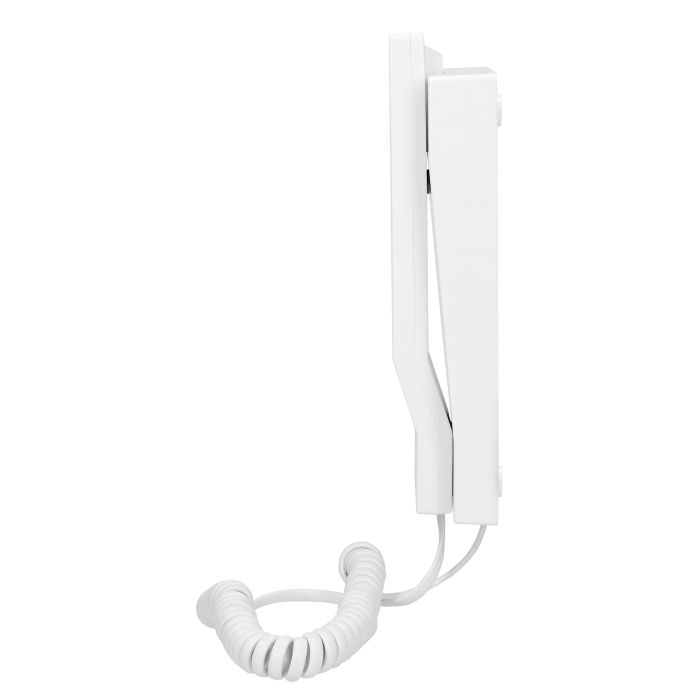

    Indoor panel:
    Mounting method indoor station:Surface mounting
    Hands free:NO
    Internal communication:so
    Number of ringtones:one
    Loudness control:so
    Mutable call tone:NO
    Material indoor station:Plastic
    Colour indoor station:White
    Width [mm]:82
    Height [mm]:180
    Depth [mm]:40

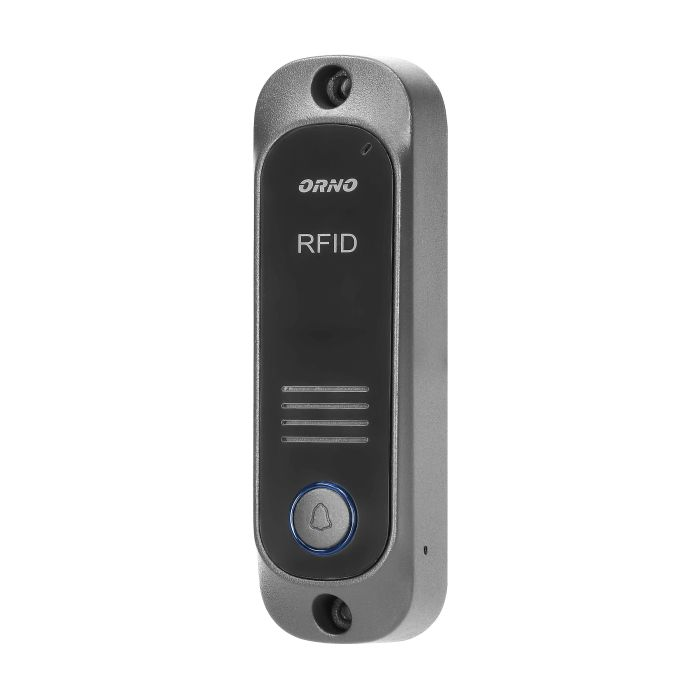

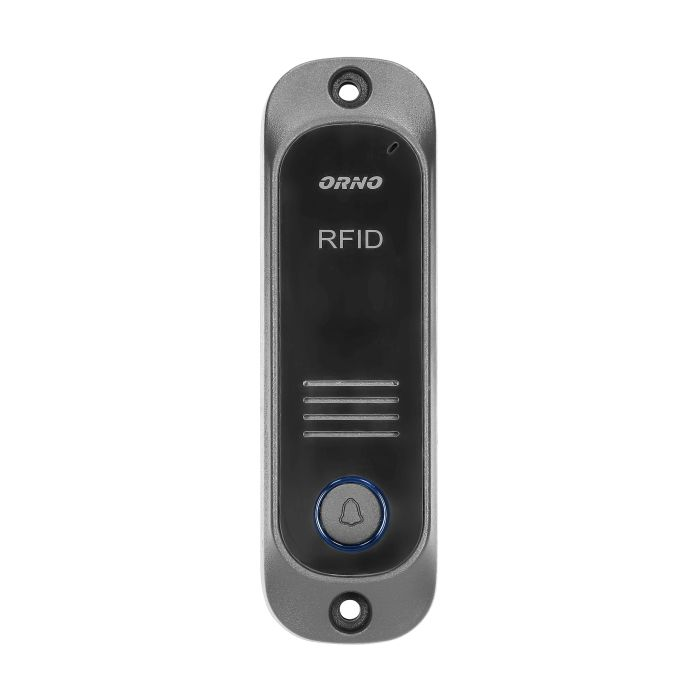

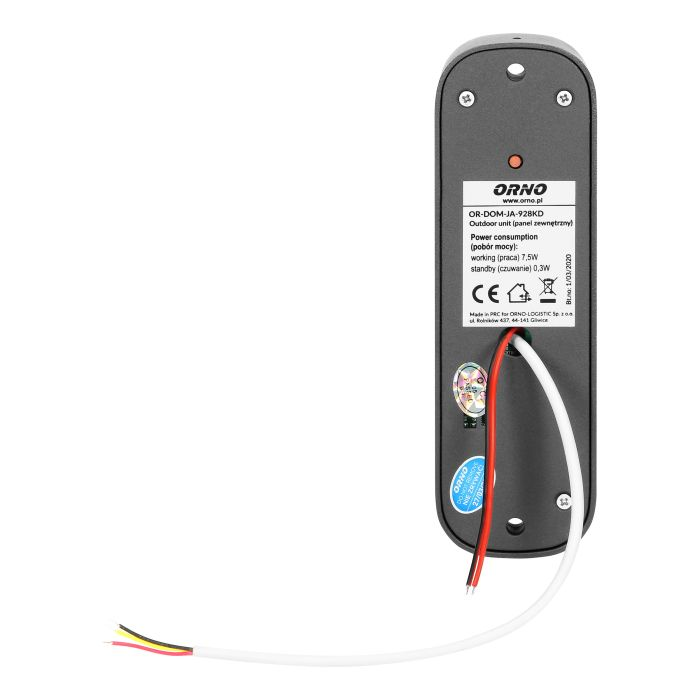

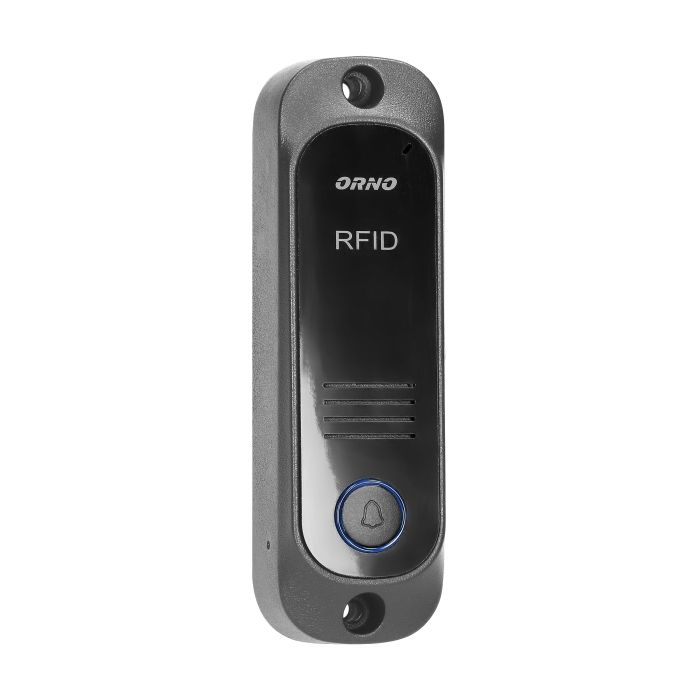

    External panel:
    Number of call buttons:one
    Mounting method outdoor station:Surface mounting
    With digital door code:NO
    Card and proximity tags reader:so
    Frequency of RFID tags:125kHz
    Label space/information surface:NO
    With cover:NO
    Degree of protection (IP):IP44
    Material outdoor station:Aluminium
    Colour outdoor station:Gray
    Width [mm]:43
    Height [mm]:140
    Depth [mm]:29
    Other features:RFID - max. 10 users (keyrings included: 4 users + 2 admin)


    Alternative Products

    [ORNOR-DB-MT-156] 140003-ONDO AC wireless doorbell plug-in system, with battery-free button, operation range up to 200m. -ORN
    140003-ONDO AC wireless doorbell plug-in system, with battery-free button, operation range up to 200m. -ORN
    [ORNOR-DB-MT-165] 140004-ONDO AC, set of 2 wireless doorbells, black with battery-free button, plug-in system, operation range up to 200m-ORN
    140004-ONDO AC, set of 2 wireless doorbells, black with battery-free button, plug-in system, operation range up to 200m-ORN
    [ORNDV-2] 140394 - Electronic door viewer with doorbell and recording function
    140394 - Electronic door viewer with doorbell and recording function
    [ORNOR-DB-KA-168/W] 140529 - TELA DC wireless battery-powered doorbell, learning system, 38 sounds, 150m, white
    140529 - TELA DC wireless battery-powered doorbell, learning system, 38 sounds, 150m, white
    [ORNOR-DB-FX-152] 140532 - TORINO 2 DC wireless doorbell with learning system, 58 ringtones, a waterproof button; operation range up to 400m;
    140532 - TORINO 2 DC wireless doorbell with learning system, 58 ringtones, a waterproof button; operation range up to 400m;
    [ORNOR-DB-KA-167/W] 140535 - TELA AC wireless mains-powered doorbell, learning system, 38 sounds, white
    140535 - TELA AC wireless mains-powered doorbell, learning system, 38 sounds, white
    [ORNOR-DB-QS-159] 140539 - CALYPSO II AC wireless doorbell mains powered, learning system, 36 ringtones, 300m range
    140539 - CALYPSO II AC wireless doorbell mains powered, learning system, 36 ringtones, 300m range
    [ORNOR-DB-QX-155] 140540 - LONGA AC wireless doorbell learning system, 36 ringtones, 300m operation range, the bell (receiver) is connected directly to the ~230V socket, while the transmitter is powered by 3V CR2032 battery;
    140540 - LONGA AC wireless doorbell learning system, 36 ringtones, 300m operation range, the bell (receiver) is connected directly to the ~230V socket, while the transmitter is powered by 3V CR2032 battery;
    [ORNOR-DB-FX-153] 140541 - TORINO 2 AC wireless doorbell with learning system, 58 ringtones and a waterproof button; operation range up to 400m;
    140541 - TORINO 2 AC wireless doorbell with learning system, 58 ringtones and a waterproof button; operation range up to 400m;
    [ORNOR-DB-MT-156/W] 140543 - ONDO AC wireless doorbell, white plug-in system, with battery-free button, learning system, 36 ringtones, operation range up to 200m
    140543 - ONDO AC wireless doorbell, white plug-in system, with battery-free button, learning system, 36 ringtones, operation range up to 200m
    [ORNOR-DP-MR-150/W] 143008-BREVIS Maxi AC two-tones doorbell with wire, 230V, white-ORN
    143008-BREVIS Maxi AC two-tones doorbell with wire, 230V, white-ORN

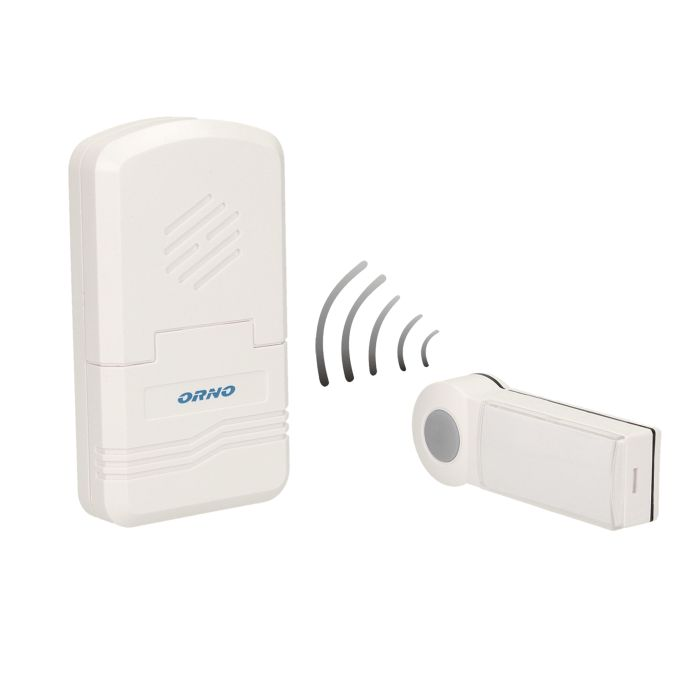

    [ORNOR-DB-KH-122] 143064- DISCO DC wireless, battery powered doorbell with learning system range in open field: 70 m, color - white, waterproof button (IP44)
