- 149124 - Détecteur de mouvement PIR 360° 230V AC 1200W max. 300W LED IP65 blanc encastrable diamètre de détection 8m - ORN

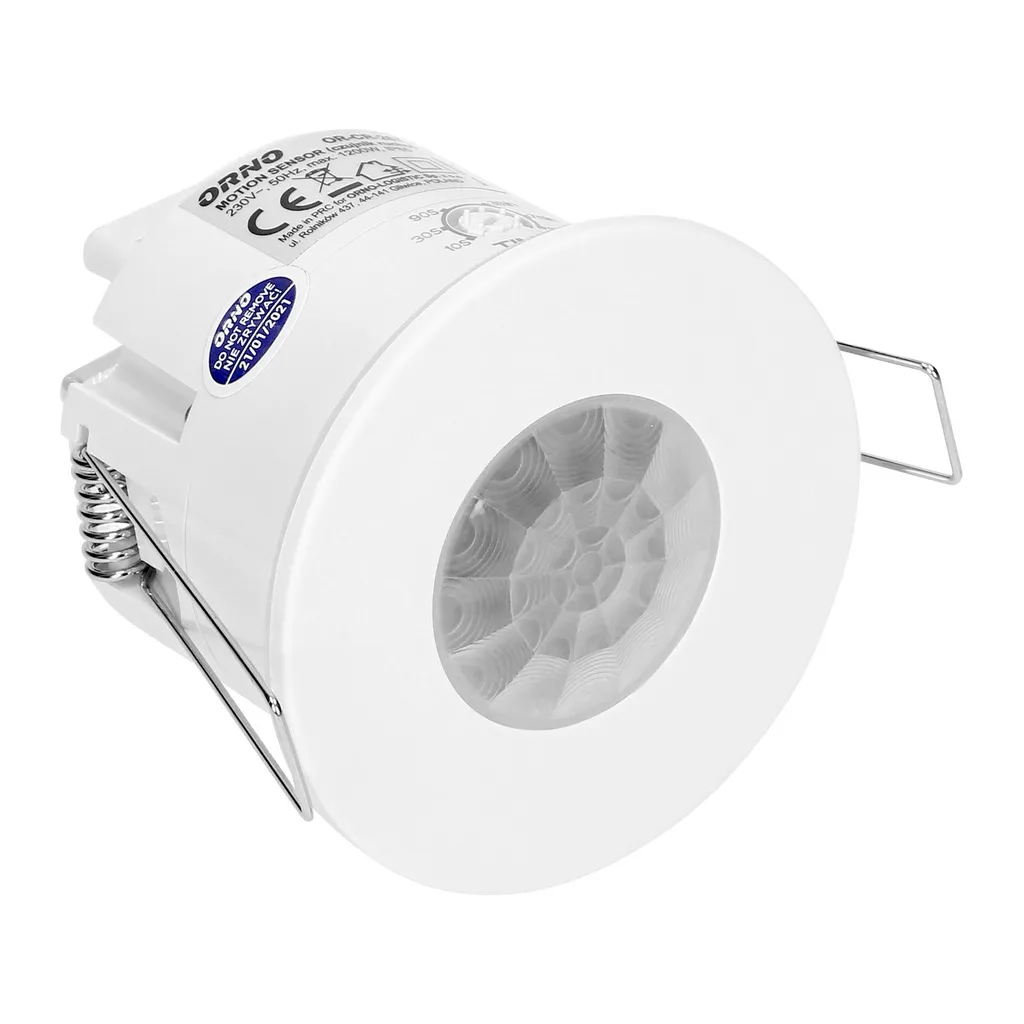

149124 - Détecteur de mouvement PIR 360° 230V AC 1200W max. 300W LED IP65 blanc encastrable diamètre de détection 8m - ORN
https://www.ledvista.com/shop/ornor-cr-267-149124-detecteur-de-mouvement-pir-360deg-230v-ac-1200w-max-300w-led-ip65-blanc-encastrable-diametre-de-detection-8m-orn-1504 https://www.ledvista.com/web/image/product.template/1504/image_1920?unique=cdc36d7
(0 avis)
This motion sensor is suitable for flush-mounting in suspended ceilings. It can control lighting or other electric appliances. Additional features of the product: mechanical adjustment of the sensors position, potentiometers to adjust activation time and light intensity. This sensor is LED-compatible. High ingress protection level (IP65) of the sensor makes it suitable for outdoor installation.
Orno
ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.
| General information: | |
|---|---|
| Max. load: | 1200W |
| Max. load of the LED light source: | 300W |
| Degree of protection (IP): | 65 |
| Relay output: | Yes |
| Nominal voltage: | 230V~, 50Hz |
| Presence detector: | Yes |
| Colour: | white |
| Installation: | flush mounting |
| Dimensions of the sensor - width (mm): | 87,3 mm |
| Dimensions of the sensor - height (mm): | 76 mm |
| Dimensions of the sensor - depth (mm): | 76 mm |
| Working temperature: | -20℃~+40℃ |
| Other features: | 3 sensors |
| Detection angle: | 360° |
| Dimensions of the mounting hole: | 61,5 mm |
| Type of sensor: | infrared |
| Detection range: | Ø6 m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min.: 10 sec. ± 3 sec., max.: 15min.±2min |
| Adjustment of motion detection range (SENS): | No |
Specifications
| Détecteur de mouvement | Oui |
