  2. 140009-NAOS video doorphone set for 2-wires handset-free, multicolor 4.3"

140009-NAOS video doorphone set for 2-wires handset-free, multicolor 4.3"

https://electon.odoo.com/web/image/product.template/608/image_1920?unique=7598224

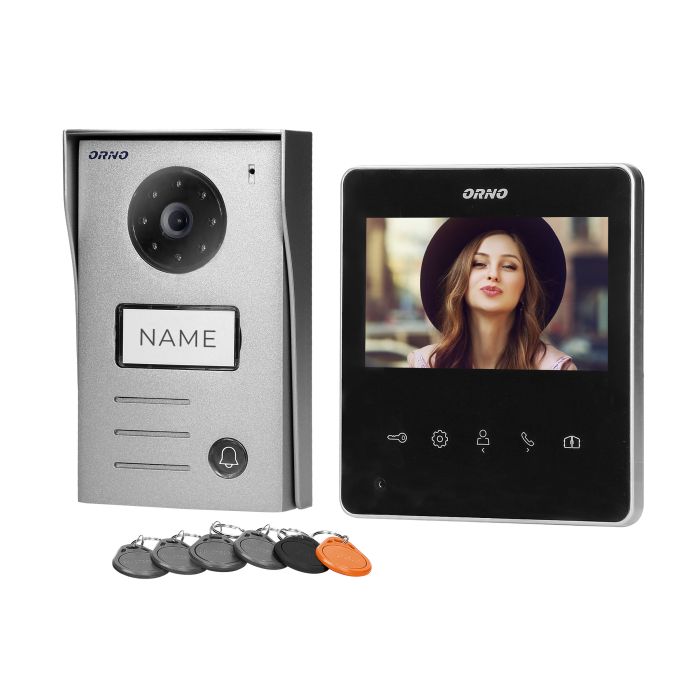

NAOS handset-free video doorphone set with 2-wires has been designed for installation in single family building. The set includes LCD monitor with 4.3" touch display and external panel with a camera, card and proximity tags reader, name plate and twilight sensor. Intercom function is available after connection of an additional monitor. Other features of the set: direct control of the electric strike, gate opening, 10 ringtones to choose from. Colour: black.

240.00 € 240.0 EUR 240.00 €

300.00 €

SKU: ORNOR-VID-SH-1074
EAN: 5908254807718
Availability: In stock

    This combination does not exist.

    Orno
    ORNO have been supplying innovative products under three main product lines to the market since 2001, and our new ideas are quickly converted into effective and proven solutions. That is why our products have gained recognition and a strong position on the European market.

    Technical specyfication

    General information:
    Type:single-family
    Number of wires:2+2
    Type of power supply:mains power supply
    Type of transmission:wired
    Possibility of extension by an additional external panel:No
    Possibility of extension by an additional monitor:Yes
    Possibility of extension by an additional video uniphone:No
    Gate opening:Yes
    Current supply of the electric strike:power supply from a videodoorphone
    Connection system:2-wire
    Possibility of extension by an additional cctv camera:No

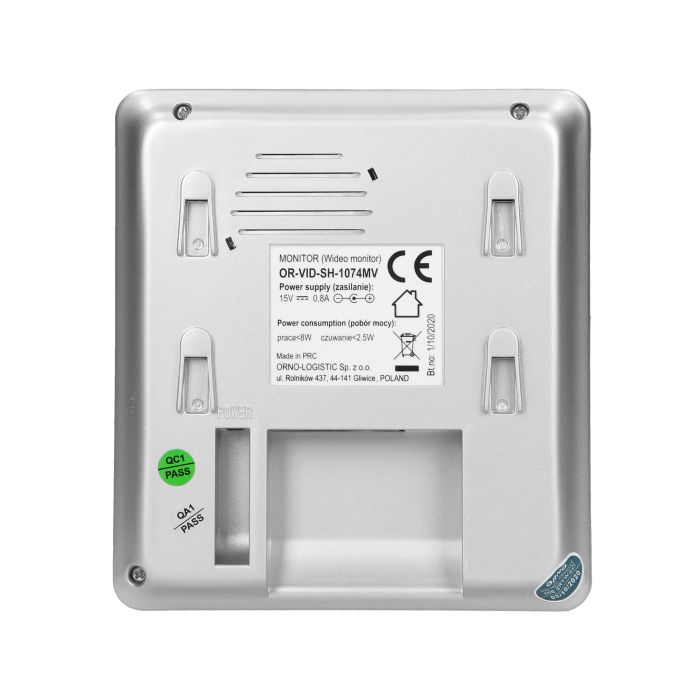

    Monitor:
    SD card reader:No
    Number of ringtones:10
    Operation:via speakerphone
    Display:4.3 "
    Resolution of the monitor's screen:480 x 272
    Memory:No
    Intercom function:Yes
    Touch screen:No
    Dimensions of the of the monitor - width (mm):120 mm
    Dimensions of the of the monitor - height (mm):130 mm
    Dimensions of the of the monitor - depth (mm):24.5 mm

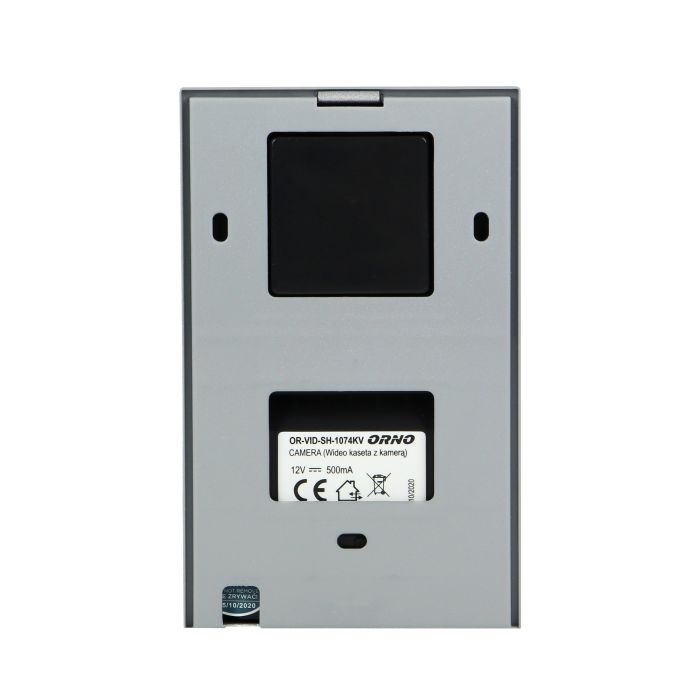

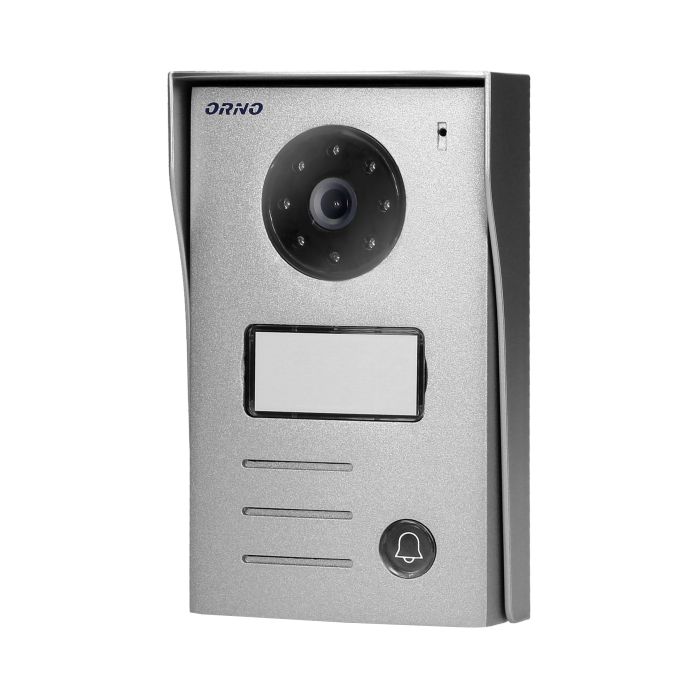

    External panel with a camera:
    Resolution of the camera:733 x 493
    Vertical/horizontal camera's view angle:33° / 47°
    Card and proximity tags reader:Yes
    Type of camera:traditional lens
    Installation:surface mounting
    Keypad:No
    Night lighting:infrared
    Dimensions of the external panel - depth:45 mm
    Dimensions of the external panel - width:93 mm
    Dimensions of the external panel - height:150 mm
