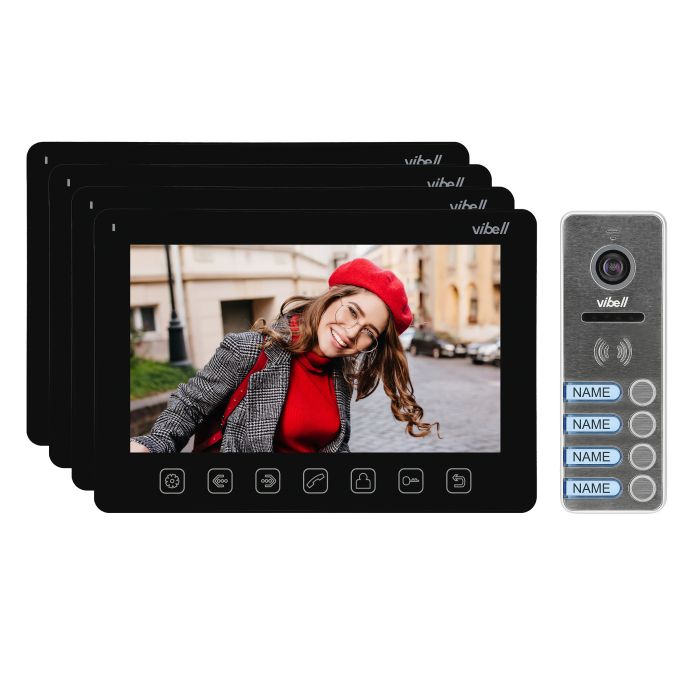

  2. 140363-NOVEO MULTI4 a four-family video door phone set, LCD 7" monitor, black

140363-NOVEO MULTI4 a four-family video door phone set, LCD 7" monitor, black

https://b2b.electon.com/web/image/product.template/1258/image_1920?unique=a782e7e

An example of VIBELL set: NOVEO MULTI4 a four-family video door phone set does not require any uniphone. It includes a multicolour, flat 7" LCD monitor and a very durable, wide-angle video-camera. It has a user-friendly OSD menu, which is used to instantly adjust monitor parameters. The set enables gate control function and opening of the door lock output directly from the video-camera panel. Available colours: black and white.

913.60 € 913.6 EUR 913.60 €

1,142.00 €

SKU: ORNOR-VID-EX-1065/B
EAN: 5900378659259
Availability: Out of stock

Out of stock. Contact for deliverability.

    This combination does not exist.

    Vibell

    Technical specyfication

    General information:
    Number of wires:4+2
    Type of power supply:mains power supply
    Type of transmission:wired
    Possibility of extension by an additional external panel:Yes
    Possibility of extension by an additional monitor:Yes
    Possibility of extension by an additional video uniphone:No
    Gate opening:Yes
    Current supply of the electric strike:power supply from a videodoorphone
    Connection system:4-wire
    Possibility of extension by an additional cctv camera:Yes
    Monitor:
    SD card reader:No
    Number of ringtones:12
    Operation:via speakerphone
    Display:7 "
    Resolution of the monitor's screen:800/480
    Memory:No
    Intercom function:Yes
    Touch screen:No
    Other features of the monitor:menu in Polish and English
    Dimensions of the of the monitor - width (mm):185 mm
    Dimensions of the of the monitor - height (mm):127 mm
    Dimensions of the of the monitor - depth (mm):17 mm
    External panel with a camera:
    Vertical/horizontal camera's view angle:96° / 110°
    Resolution:700 TVL
    Other features of the camera:IP65
    Card and proximity tags reader:No
    Type of camera:traditional lens
    Keypad:No
    Night lighting:white LEDs
    Dimensions of the external panel - depth:21 mm
    Dimensions of the external panel - width:55 mm
    Dimensions of the external panel - height:152 mm
